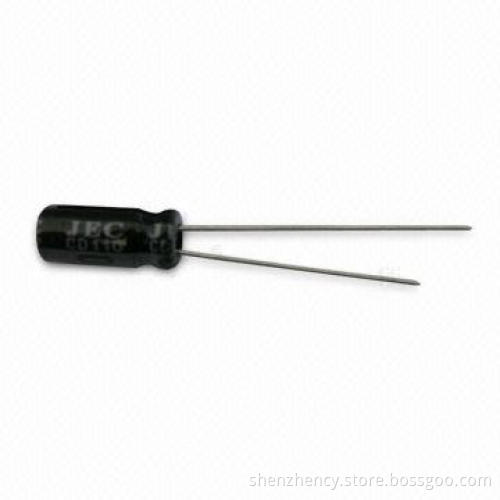

Electrolytic Capacitor in Standard Type with 6.3 to 450V Rated Voltage Range

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T

Product Description

Rated voltage range: 6.3 to 450V

Capacitance: 10μF

Capacitance tolerance (20°C, 120Hz): ±20% (M)

Leakage current: after 2-minute rated voltage application

I ≤0.01CV or 3μA, whichever greater (for 6.3 to100V)

I ≤0.02CV or ±20μA (for 160 to 450V) (C: nominalcapacitance and V: rated voltage)

Dissipation factor (20°C, 120Hz): WV (V) 6.3, 10, 16, 25,35, 50, 63, 100, 160 to 250 and 350 to 450

Maximum tan: 0.24, 0.20, 0.16, 0.14, 0.12, 0.10, 0.09, 0.08,0.15 and 0.20

Capacitance change: initial value ≤20%

Dissipation factor: specified value ≤200%

Shelf lifespan:

Capacitance change: initial value ≤20%

Dissipation factor: specified value ≤200%

Loading lifespan: 2,000-hour at 85°C

Standard type

Case size: >5mm diameter has safety vents

Operating temperature range: -40 to +85 and -25 to+85°C

With RoHS mark

Leakage current: ≤specified value
