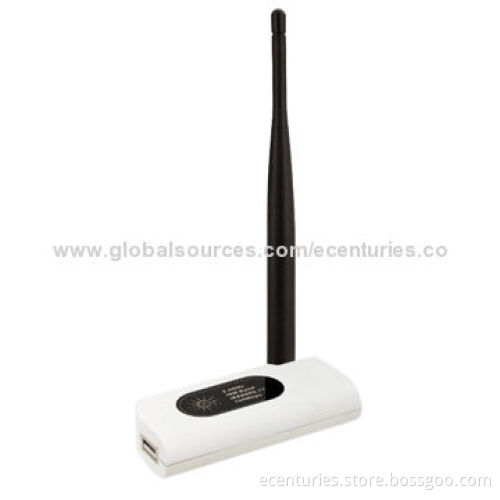

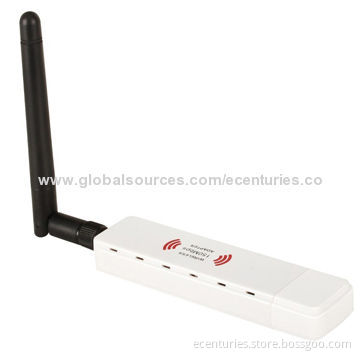

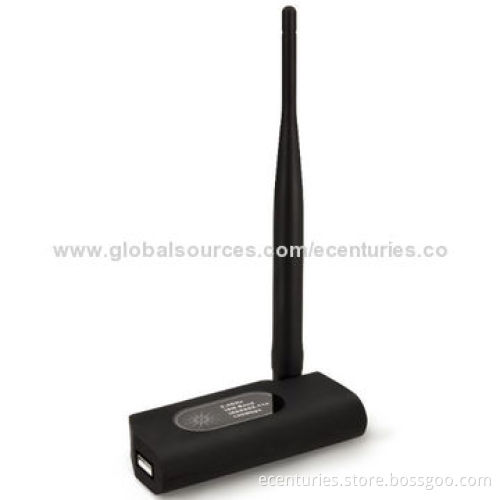

150Mbps Wireless USB Adapter, Wireless Power Amplifier USB Adapter, Supports Wi-Fi Direct
  • 150Mbps Wireless USB Adapter, Wireless Power Amplifier USB Adapter, Supports Wi-Fi Direct
  • 150Mbps Wireless USB Adapter, Wireless Power Amplifier USB Adapter, Supports Wi-Fi Direct
150Mbps Wireless USB Adapter, Wireless Power Amplifier USB Adapter, Supports Wi-Fi Direct
150Mbps Wireless USB Adapter, Wireless Power Amplifier USB Adapter, Supports Wi-Fi Direct

150Mbps Wireless USB Adapter, Wireless Power Amplifier USB Adapter, Supports Wi-Fi Direct

Get Latest Price
Payment Type:
T/T
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T
Product Description
Product Description
  • Features:
    • Maximum power: up to 1,000mW
    • Provide about 1,000 meters Wi-Fi signal coverage (in open area)
    • External 5dBi foldable antenna
    • High-power Wi-Fi USB adapter 802.11b/g/n 1T1R mode (500mW 150Mbps Ralink RT3070)
    • Maximum power up to 500mW on 802.11g, provide about 1,000 meters Wi-Fi signal coverage (in open area)
    • Supports USB2.0/1.1 interface, mini USB port + 1.2 meters type A extended cable
    • With 5dBi (7 or 9dBi) detachable SMA external antenna
    • High-speed and longer extended distance for embedded devices and high-end game machines
    • High-security: WEP 64/128 bit, WPA, WPA2
    • LED show: link or activity
  • Specification:
    • 802.11b: 1, 2, 5.5, 11Mbps
    • 802.11g: 6, 9, 12, 24, 36, 48 and 54Mbps
    • 802.11n: (20MHz) MCS0-7, supports up to 72Mbps (40MHz) MCS0-7, support up to 150Mbps
    • OFDM, peak rate 150Mbps, peak throughput 90Mbps
    • Power management
    • Wi-Fi certifications: 802.11 b/g/n, WPA, WPA2, WMM and WMM-PS
    • WHQL, Cisco CCX
  • Hardware:
    • Chipset: Ralink RT3070, 1T1R mode
    • Host interface: USB2.0/1.1, type A (4-pin header)
    • LEDs: link/activity
  • RF:
    • Antenna: external 5/7/9dBi SMA connector antenna
    • Frequencies: 2,412-2483.5MHz, ISM band
  • Transmit power:
    • 802.11b: 18 ±1.5dBm
    • 802.11g: 15 ±1.5dBm
    • 802.11n: (HT20), 14 ±1.5dBm
    • 802.11n: (HT40), 14 ±1.5dBm
  • Receiver sensitivity:
    • 802.11b: -84dBm at 11Mbps
    • 802.11g: -68dBm at 54Mbps
    • 802.11n: (HT20), -67dBm at MSC7
    • 802.11n: (HT40), -63dBm at MSC7
  • Software:
    • Operating systems: Microsoft's Windows CE/2000/XP/Vista/7, Linux 2.6. X, Apple's Mac OS X
    • Security: WEP 64/128bit, WPA, WPA2, 802.1x, and 802.11I, Cisco CCS V1.0, 2.0 and V3.0 compliant
  • Operating conditions:
    • Voltage/current range: 5.0V DC ±5%/<110mA
    • Operating temperature: 0-50°C
    • Storage temperature: -20-70°C
    • Operating humidity: 95% RH (non-condensing)
    • Storage humidity: 95% RH (non-condensing)
  • Maximum power: up to 1,000mW
  • Provide about 1,000 meters Wi-Fi signal coverage (in open area)
  • External 5dBi foldable antenna
  • High-power Wi-Fi USB adapter 802.11b/g/n 1T1R mode (500mW 150Mbps Ralink RT3070)
  • Maximum power up to 500mW on 802.11g, provide about 1,000 meters Wi-Fi signal coverage (in open area)
  • Supports USB2.0/1.1 interface, mini USB port + 1.2 meters type A extended cable
  • With 5dBi (7 or 9dBi) detachable SMA external antenna
  • High-speed and longer extended distance for embedded devices and high-end game machines
  • High-security: WEP 64/128 bit, WPA, WPA2
  • LED show: link or activity
  • 802.11b: 1, 2, 5.5, 11Mbps
  • 802.11g: 6, 9, 12, 24, 36, 48 and 54Mbps
  • 802.11n: (20MHz) MCS0-7, supports up to 72Mbps (40MHz) MCS0-7, support up to 150Mbps
  • OFDM, peak rate 150Mbps, peak throughput 90Mbps
  • Power management
  • Wi-Fi certifications: 802.11 b/g/n, WPA, WPA2, WMM and WMM-PS
  • WHQL, Cisco CCX
  • Chipset: Ralink RT3070, 1T1R mode
  • Host interface: USB2.0/1.1, type A (4-pin header)
  • LEDs: link/activity
  • Antenna: external 5/7/9dBi SMA connector antenna
  • Frequencies: 2,412-2483.5MHz, ISM band
  • 802.11b: 18 ±1.5dBm
  • 802.11g: 15 ±1.5dBm
  • 802.11n: (HT20), 14 ±1.5dBm
  • 802.11n: (HT40), 14 ±1.5dBm
  • 802.11b: -84dBm at 11Mbps
  • 802.11g: -68dBm at 54Mbps
  • 802.11n: (HT20), -67dBm at MSC7
  • 802.11n: (HT40), -63dBm at MSC7
  • Operating systems: Microsoft's Windows CE/2000/XP/Vista/7, Linux 2.6. X, Apple's Mac OS X
  • Security: WEP 64/128bit, WPA, WPA2, 802.1x, and 802.11I, Cisco CCS V1.0, 2.0 and V3.0 compliant
  • Voltage/current range: 5.0V DC ±5%/<110mA
  • Operating temperature: 0-50°C
  • Storage temperature: -20-70°C
  • Operating humidity: 95% RH (non-condensing)
  • Storage humidity: 95% RH (non-condensing)
