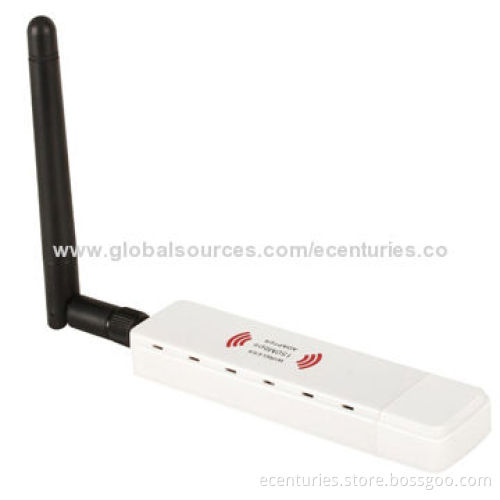

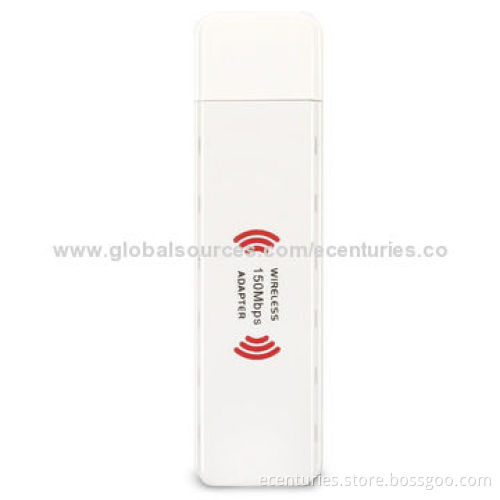

150Mbps Wi-Fi Adapter with Ralink Chipset RT3070
  • 150Mbps Wi-Fi Adapter with Ralink Chipset RT3070
  • 150Mbps Wi-Fi Adapter with Ralink Chipset RT3070
150Mbps Wi-Fi Adapter with Ralink Chipset RT3070
150Mbps Wi-Fi Adapter with Ralink Chipset RT3070

150Mbps Wi-Fi Adapter with Ralink Chipset RT3070

Get Latest Price
Payment Type:
T/T
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T
Product Description
Product Description
  • With Ralink Chipset RT3070
  • Features:
    • 802.11b: 1, 2, 5.5 and 11Mbps
    • 802.11g: 6, 9, 12, 18, 24, 36, 48 and 54Mbps
    • 802.11n: (20MHz) MCSO-7, supports up to 72Mbps, (40MHz) MCSO-7, supports up to 150Mbps
    • OFDM, peak rate 150Mbps, peak throughput 90Mbps
    • WiFi: 802.11 b/g/n, WPA, WPA2, WMM and WMM-PS, WHQL, Cisco and CCX
  • Hardware:
    • Chip-set: Ralink RT3070
    • Host interface USB type A
    • LED link/activity
    • With 2dbi Detachale Antenna
    • Frequencies: 2412 to 2472MHz, ISM band
    • Transmission power: 802.11b: 19+/-1.5dBm, 802.11g: 15+/-1.5dBm
    • Receive sensitivity: 802.11b: -84+/-1.5dBm at 11Mbps, 802.11g: -69+/-1.5dBm at 54Mbps
  • Software:
    • Operation systems: Windows CE/2000/XP/Vista, Linux 2.6.X & Mac OS X
    • Security: WEP 64/128bit, WPA, WPA2, 802.1X and 802.11i
    • Cisco, CCS, V1.0, 2.0 and V3.0 compliant
  • Operating conditions:
    • Voltage range: DC 5.0V ±5%, <130mA
    • Operating temperatures: 0 to 40℃
    • Storage temperatures: -20 to 70℃
    • Operating humidity: RH 95% (non-condensing)
    • Storage humidity: RH 95% (non-condensing)
  • Dimensions: 75x24x12.5mm
  • 802.11b: 1, 2, 5.5 and 11Mbps
  • 802.11g: 6, 9, 12, 18, 24, 36, 48 and 54Mbps
  • 802.11n: (20MHz) MCSO-7, supports up to 72Mbps, (40MHz) MCSO-7, supports up to 150Mbps
  • OFDM, peak rate 150Mbps, peak throughput 90Mbps
  • WiFi: 802.11 b/g/n, WPA, WPA2, WMM and WMM-PS, WHQL, Cisco and CCX
  • Chip-set: Ralink RT3070
  • Host interface USB type A
  • LED link/activity
  • With 2dbi Detachale Antenna
  • Frequencies: 2412 to 2472MHz, ISM band
  • Transmission power: 802.11b: 19+/-1.5dBm, 802.11g: 15+/-1.5dBm
  • Receive sensitivity: 802.11b: -84+/-1.5dBm at 11Mbps, 802.11g: -69+/-1.5dBm at 54Mbps
  • Operation systems: Windows CE/2000/XP/Vista, Linux 2.6.X & Mac OS X
  • Security: WEP 64/128bit, WPA, WPA2, 802.1X and 802.11i
  • Cisco, CCS, V1.0, 2.0 and V3.0 compliant
  • Voltage range: DC 5.0V ±5%, <130mA
  • Operating temperatures: 0 to 40℃
  • Storage temperatures: -20 to 70℃
  • Operating humidity: RH 95% (non-condensing)
  • Storage humidity: RH 95% (non-condensing)
