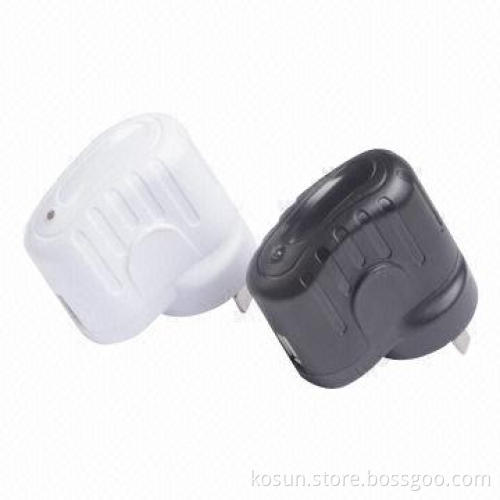

AC/DC Adapter with 4.2 to 15V DC, 650mA Output
  • AC/DC Adapter with 4.2 to 15V DC, 650mA Output
  • AC/DC Adapter with 4.2 to 15V DC, 650mA Output
AC/DC Adapter with 4.2 to 15V DC, 650mA Output
AC/DC Adapter with 4.2 to 15V DC, 650mA Output

AC/DC Adapter with 4.2 to 15V DC, 650mA Output

Get Latest Price
Payment Type:
T/T or L/C
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T or L/C
Product Description
Product Description
  • Characteristics:
    • Power adapter, fixed frequency control circuit apply to mobilephone PDA digital camera router tax-control POS and more
    • Ultra low no-load/standby power consumption meet CEC IV greenpower requirement
  • Electrical characteristics:
    • Input voltage: 100 to 240V AC
    • Input current: 0.4A (maximum)
    • Frequency: 50/60Hz
    • Output voltage: 3.3 to 18V
    • No-load power consumption: 0.5W (maximum)
    • Efficiency: 70% (minimum)
    • Ripples and noise: 80 to 180mV
    • Line regulation: ±1%
    • Loading regulation: ±5%
    • Output protections:
      • Short-circuit
      • Over-voltage
      • Over-current
    • Reliability:
      • Hi-pot test: 3,000V AC, 5mA (maximum)
      • Insulation resistance: 7M© (maximum)
      • Leakage current: 0.25mA (maximum)
      • Operating temperature: 0 to 40 degrees Celsius
      • Storage humidity: 5 to 95% RH
      • Burn-in test: 80 to 100% at load, 40 ±5 degrees Celsius,4 hours
      • Safety marks standard: UL/EN60950/GB4943 (for IT)
      • EMC standard: EN55022 class B/FCC part 15 class B
      • EN55024/A1: 2001/EN61000
  • Power adapter, fixed frequency control circuit apply to mobilephone PDA digital camera router tax-control POS and more
  • Ultra low no-load/standby power consumption meet CEC IV greenpower requirement
  • Input voltage: 100 to 240V AC
  • Input current: 0.4A (maximum)
  • Frequency: 50/60Hz
  • Output voltage: 3.3 to 18V
  • No-load power consumption: 0.5W (maximum)
  • Efficiency: 70% (minimum)
  • Ripples and noise: 80 to 180mV
  • Line regulation: ±1%
  • Loading regulation: ±5%
  • Output protections:
    • Short-circuit
    • Over-voltage
    • Over-current
  • Reliability:
    • Hi-pot test: 3,000V AC, 5mA (maximum)
    • Insulation resistance: 7M© (maximum)
    • Leakage current: 0.25mA (maximum)
    • Operating temperature: 0 to 40 degrees Celsius
    • Storage humidity: 5 to 95% RH
    • Burn-in test: 80 to 100% at load, 40 ±5 degrees Celsius,4 hours
    • Safety marks standard: UL/EN60950/GB4943 (for IT)
    • EMC standard: EN55022 class B/FCC part 15 class B
    • EN55024/A1: 2001/EN61000
  • Short-circuit
  • Over-voltage
  • Over-current
  • Hi-pot test: 3,000V AC, 5mA (maximum)
  • Insulation resistance: 7M© (maximum)
  • Leakage current: 0.25mA (maximum)
  • Operating temperature: 0 to 40 degrees Celsius
  • Storage humidity: 5 to 95% RH
  • Burn-in test: 80 to 100% at load, 40 ±5 degrees Celsius,4 hours
  • Safety marks standard: UL/EN60950/GB4943 (for IT)
  • EMC standard: EN55022 class B/FCC part 15 class B
  • EN55024/A1: 2001/EN61000
