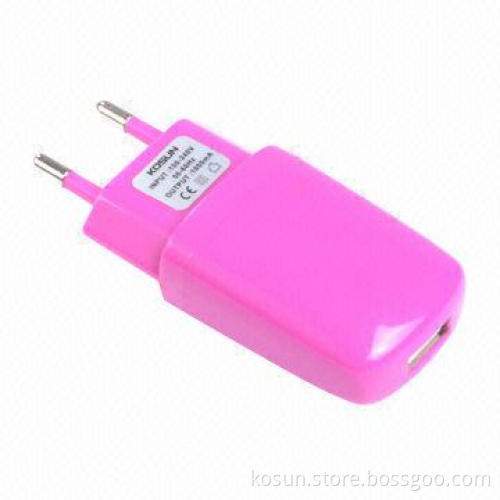

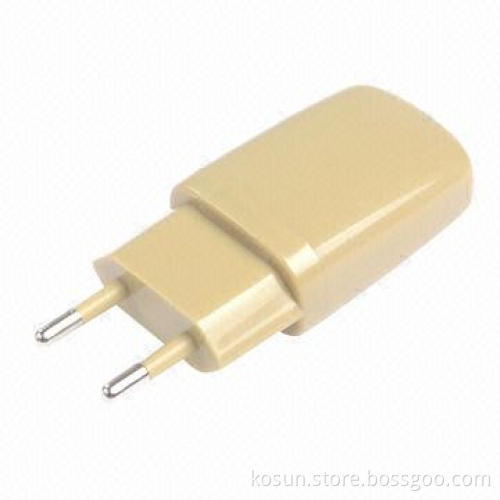

Travel Charger with 50/60Hz Frequency
  • Travel Charger with 50/60Hz Frequency
  • Travel Charger with 50/60Hz Frequency
Travel Charger with 50/60Hz Frequency
Travel Charger with 50/60Hz Frequency

Travel Charger with 50/60Hz Frequency

Get Latest Price
Payment Type:
T/T or L/C
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T or L/C
Product Description
Product Description
  • Characteristics:
    • Power adapter, fixed frequency control circuit apply to mobilephones, PDAs, digital cameras, routers, tax-controls and PoS
    • Ultra low no-load/standby power consumption meets CEC IV greenpower requirement
  • Electrical:
    • Input voltage: 100 to 240V AC
    • Input current: 0.4A (maximum)
    • Frequency: 50/60Hz
    • Output voltage: 3.3 to 18V
    • No-load power consumption: 0.5W (maximum)
    • Efficiency: 70% (minimum)
    • Ripple and noise: 80 to 180mV
    • Line regulation: ±1%
    • Loading regulation: ±5%
  • Output protections:
    • Short-circuit
    • Over-voltage
    • Over-current
  • Reliability:
    • Hi-pot test: 3000V AC, 5mA (maximum)
    • Insulation resistance: 7Mμ (maximum)
    • Leakage current: 0.25mA (maximum)
    • Operating temperature: 0 to 40°C
    • Storage humidity range: 5 to 95% RH
    • Burn-in test range: 80 to 100% at load, 40 ±5°C, 4hours
    • Safety marks standards: UL/EN 60950/GB 4943 (for IT)
    • EMC standards: EN 55022 Class B/FCC part 15 Class B
    • EN 55024/A1: 2001/EN 61000
  • Power adapter, fixed frequency control circuit apply to mobilephones, PDAs, digital cameras, routers, tax-controls and PoS
  • Ultra low no-load/standby power consumption meets CEC IV greenpower requirement
  • Input voltage: 100 to 240V AC
  • Input current: 0.4A (maximum)
  • Frequency: 50/60Hz
  • Output voltage: 3.3 to 18V
  • No-load power consumption: 0.5W (maximum)
  • Efficiency: 70% (minimum)
  • Ripple and noise: 80 to 180mV
  • Line regulation: ±1%
  • Loading regulation: ±5%
  • Short-circuit
  • Over-voltage
  • Over-current
  • Hi-pot test: 3000V AC, 5mA (maximum)
  • Insulation resistance: 7Mμ (maximum)
  • Leakage current: 0.25mA (maximum)
  • Operating temperature: 0 to 40°C
  • Storage humidity range: 5 to 95% RH
  • Burn-in test range: 80 to 100% at load, 40 ±5°C, 4hours
  • Safety marks standards: UL/EN 60950/GB 4943 (for IT)
  • EMC standards: EN 55022 Class B/FCC part 15 Class B
  • EN 55024/A1: 2001/EN 61000
