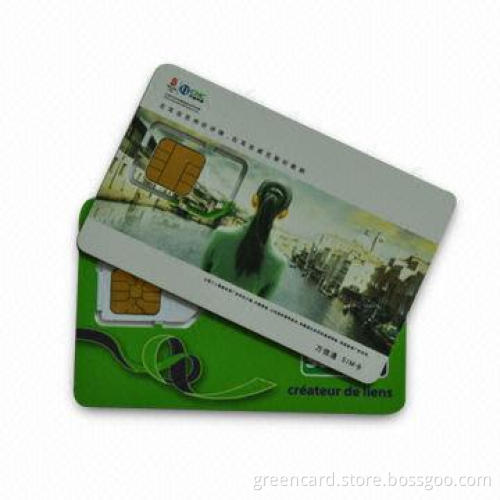

GSM SIM Card, Made of ABS/PVC Material, 256 Bytes Inner RAM and High Performance IC

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Specifications:

High performance IC
Used in smart card
Body materials: ABS or PVC
CPU: 8 bits
Memorizer (32KB):
- 256 bytes inner RAM (256 x 8-bit SRAM)
- 1KB outer RAM (1,024 x 8-bit SRAM)
- 48KB program memorizer (48KB x 8-bit ROM)
- 32KB data memorizer (32KB x 8-bit EEPROM)
EEPROM (32KB):
- 32KB EEPROM as data memorizer
- Single byte read, write and wipe
- Multiple bytes storage (1 byte to 1 page)
- Program clock come from vibrate clock that is generated by chipitself
- At normal temperatures, can proceed at least 100,000 timeserase and write operations
- Data endurance more than ten years
- Program voltage generated in the chip
Serial I/O interfaces:
- Match IEC-7816
- Asynchronous half-duplex transmission protocol
- Two kinds of transmission velocity (372/1 and 512/8)optional
- Randomizer: 8 bits
- Power on reset: internal mechanism
- Low power work modes: sleep and clock stop
- Safety mechanisms: abnormal voltage/frequency detectionfunction and DPA/SPS attacking immunity
Working temperatures: -25 to 70°C
Working voltages: 2.7 to 3.3 and 4.5 to 5.5V
Working frequencies: 1 to 5MHz (3.57MHz)
Can be used in the Agilent 8960 and others to test set whenrunning any GSM test or lab application

Benefits:

UMTS security variables within the SIM match the defaultsettings of the GSM test and lab applications
Set-up time is reduced because the SIM is configured with thesame default IMSI and PLMN values broadcast from the test set
For dual mode testing, GSM speech loop-back is supported forGSM bit error ratio (BER) measurements
