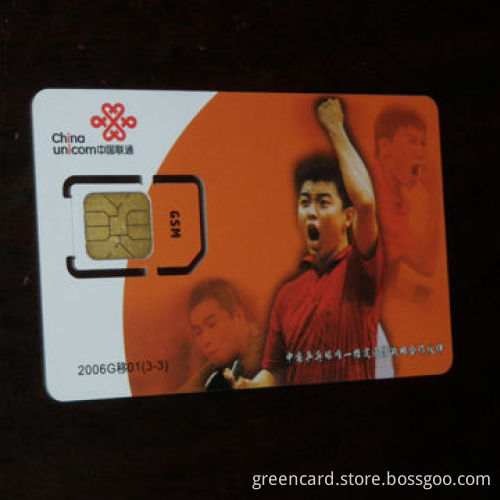

SIM Card, Provides Various Tests, Made of ABS or PVC Material

Get Latest Price

Payment Type:: Telegraphic Transfer in Advance (Advance TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Features:

High performance IC
Used in smart card
Body material: ABS or PVC
CPU: 8 bits
256 bytes inner RAM (256 x 8-bit SRAM)
1KB outer RAM (1,024 x 8-bit SRAM)
48KB program memorize (48KB x 8-bit ROM)
32KB data memorize (32KB x 8-bit EEPROM)
32KB EEPROM as data memorizer
Single byte read, write, and wipe
Multi-bytes storage (1 byte to 1 page)
Program clock come from vibrate clock that generated by chipitself
At the normal temperature, can precede at least 100,000-timeerase and write operating
EEPROM data endurance more than ten years
EEPROM program voltage generated in the chip

Serial I/O interface:

Asynchronous half-duplex transmission protocol
Two kinds of transmission velocity (372/1 and 512/8)(optional)
Randomizer: 8 bits
Power on reset: internal power on reset mechanism
Low-powered work mode: sleep and clock stop
Safety mechanism: abnormal voltage/frequency detectionfunction, DPA/SPS attacking immunity
Working temperature: -25 to +70 degrees Celsius
Working voltage: 2.7V to 3.3 and 4.5V to 5.5V
Working frequency: 1 to 5MHz (3.57MHz)
Can be used in the agilest 8960 and others to test set whenrunning any GSM test or lab application

Several benefits:

UMTS security variables within the SIM match the defaultsettings of the GSM test and lab applications
Set-up time is reduced because the SIM is configured with thesame default IMSI and PLMN values broadcast from the test set
For dual mode testing, GSM speech loop back is supported forGSM bit error ratio (BER) measurements

All trademarks shown here are for reference purposesonly. They are the property of their respective owners, and we arenot authorized to sell items bearing such trademarks.

High performance IC

Used in smart card

Body material: ABS or PVC

CPU: 8 bits

256 bytes inner RAM (256 x 8-bit SRAM)

1KB outer RAM (1,024 x 8-bit SRAM)

48KB program memorize (48KB x 8-bit ROM)

32KB data memorize (32KB x 8-bit EEPROM)

32KB EEPROM as data memorizer

Single byte read, write, and wipe

Multi-bytes storage (1 byte to 1 page)

Program clock come from vibrate clock that generated by chipitself
