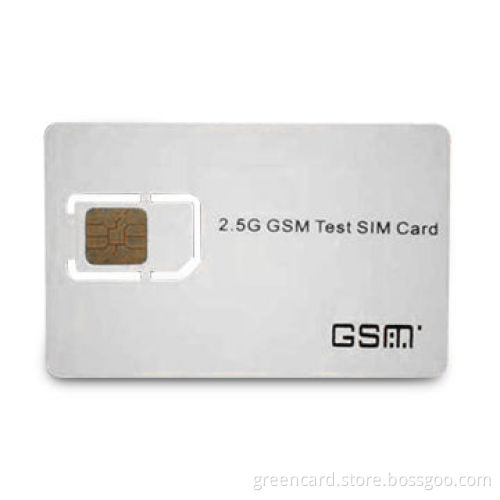

2.5G Test SIM Card with 8-bit CPU and High Performance IC, Made of ABS or PVC Body Material

2.5G Test SIM Card with 8-bit CPU and High Performance IC, Made of ABS or PVC Body Material

Get Latest Price

Payment Type:: Telegraphic Transfer in Advance (Advance TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Specifications:

High performance IC
Used in smart card
Body material: ABS or PVC
CPU: 8 bits
Memory (32KB):
- 256 bytes inner RAM (256 x 8-bit SRAM)
- 1KB outer RAM (1,024 x 8-bit SRAM)
- 48KB program memory (48KB x 8-bit ROM)
- 32KB data memory (32KB x 8-bit EEPROM)
EEPROM (32KB):
- 32KB EEPROM as data memory
- Single byte read, write and wipe
- Multi-bytes storage (1 byte to 1 page)
- Program clock come from vibrate clock that generated by chipitself
- At the normal temperature, can precede at least 100,000 timeserase and write operating
- EEPROM data endurance more than ten years
- EEPROM program voltage generated in the chip
Serial I/O interface:
- With IEC-7816 marks
- Asynchronous half-duplex transmission protocol
- Two kinds of transmission velocity (372/1 and 512/8)(optional)
Random: 8 bits
Power on reset: internal power on reset mechanism
Low power work mode: sleep and clock stop
Safety mechanism: abnormal voltage, frequency detectionfunction and DPA/SPS attacking immunity
Operating temperature: -25 to 70°C
Operating voltage: 2.7 to 3.3V and 4.5 to 5.5V
Operating frequency: 1 to 5MHz (3.57MHz)
Can be used in the Agilent 8960 and others to test set whenrunning any GSM test or lab application

Advantages:

UMTS security variables within the SIM match the defaultsettings of the GSM test and lab applications
Set-up time is reduced because the SIM is configured with thesame default IMSI and PLMN values broadcast from the test set
For dual mode testing, GSM speech loop back is supported forGSM bit error ratio (BER) measurements

All trademarks shown here are for reference purposesonly. They are the property of their respective owners, and we arenot authorized to sell items bearing such trademarks.
