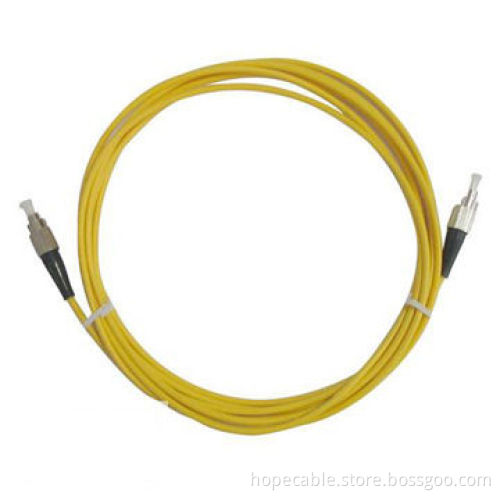

FC Single Mode Fiber Optical Patch Cord

Get Latest Price

Payment Type:: T/T, L/C, Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, L/C, Western Union

Product Description

Application:

CATV, metro
Active device termination, test equipment
Telecommunication networks, Local Area Networks (LANs), data processing networks
Premise installations, Wide Area Networks (WANs)
Industrial, medical and military

Characteristics:

High return loss
Low insertion loss
Good interchangeability and duplication
Made by high-quality ceramic sleeve

FC fiber optic patch cable cord descriptions:

The FC patch cable is the most popular patch cable used today, FC patch cable were applied in high-vibration environment
FC patch cable is completely intermateable with NTT-FC product
The FC fiber optic patch cable can screw on firmly, but you need to have the key aligned in the slot properly before you tighten it
LC patch cord and SC patch cord are more popular now
Same as SC fiber connector, FC is also invention of NTT Company from Japan
FC is with metal housing, screw structure, as the same products developed by one company, FC fiber-optic connector ferrule and sleeves used in FC fiber-optic adapter are both same as SC ones

FC fiber optic patch cable specifications:

Insert loss:
- Single mode patch cable: ≤0.3dB
- Multi-mode patch cable: ≤0.3dB
Return loss:
- Single mode patch cord: PC ≤-50 dB; UPC≤-55 dB; APC≤-60dB
- Multi-mode patch cord: ≥20dB
Duplicated: ≤0.1dB
Interchangeable: ≤0.2dB
Inserts pulls out the number of times (time) ≥1,000
Working temperature: -40-80°C
Color:
- Single mode: yellow
- Multi-mode: orange

CATV, metro

Active device termination, test equipment

Telecommunication networks, Local Area Networks (LANs), data processing networks

Premise installations, Wide Area Networks (WANs)

Industrial, medical and military

High return loss

Low insertion loss

Good interchangeability and duplication

Made by high-quality ceramic sleeve

The FC patch cable is the most popular patch cable used today, FC patch cable were applied in high-vibration environment

FC patch cable is completely intermateable with NTT-FC product

The FC fiber optic patch cable can screw on firmly, but you need to have the key aligned in the slot properly before you tighten it

LC patch cord and SC patch cord are more popular now

Same as SC fiber connector, FC is also invention of NTT Company from Japan

FC is with metal housing, screw structure, as the same products developed by one company, FC fiber-optic connector ferrule and sleeves used in FC fiber-optic adapter are both same as SC ones

Single mode patch cable: ≤0.3dB

Multi-mode patch cable: ≤0.3dB

Single mode patch cord: PC ≤-50 dB; UPC≤-55 dB; APC≤-60dB

Multi-mode patch cord: ≥20dB

Single mode: yellow

Multi-mode: orange
