Product Description

Applications:

PC, UPC or APC polishing
Fiber standards:
- Single mode fiber: ITU - T G. 652
- Multi mode fiber: ITU - T G.651

Characteristics:

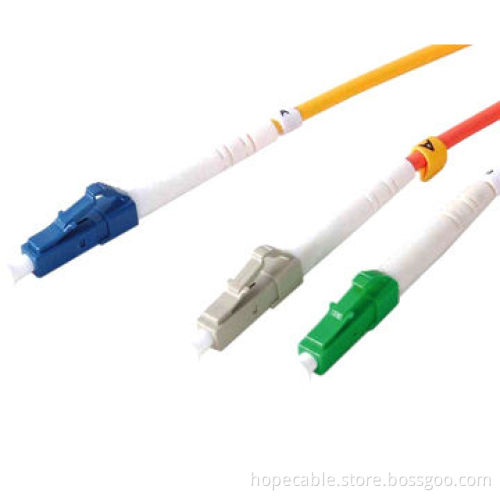

LC Fiber optic pigtails specifications:

PC, UPC or APC polishing

Fiber standards:

Single mode fiber: ITU - T G. 652

Multi mode fiber: ITU - T G.651

Standard: Telcordia GR-326-CORE

Standard housing, ceramic ferrule

Cable diameters: 3.0mm or 2.0mm or 0.9mm

Fiber types: 9/125μm, 62.5/125μm or 50/125μm or 10G

Insertion loss: SM less than 0.3 dB, MM Less than 0.3dB

Return loss: PC SM larger than 45 dB

UPC SM larger than 50dB

APC SM larger than 60dB

UPC MM larger than 20dB

Repeatability: less than 0.2 dB

Changeability: less than 0.1 dB

Operating temperature range: -40°C ~ 80°C

Storage temperature range: -40°C ~80°C

Tensile strength: 100N

Min. bending radius: 35m
