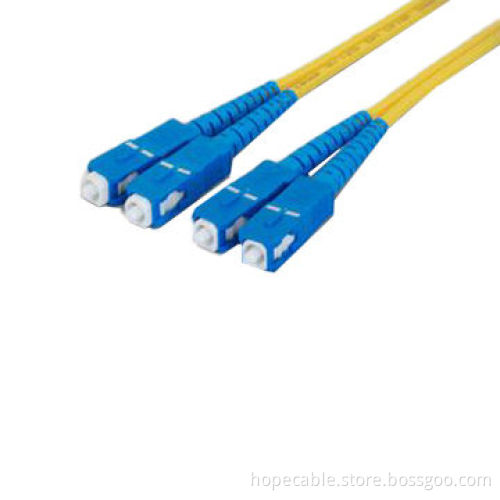

Single/Multimode ITU-TG.652 ITU-TG.651 SC Fiber Optic Pigtails/Plugs/Connectors/Adapters/Junctions

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Applications:

Fiber standards:

Characteristics:

Specifications:

PC, UPC or APC polishing

Single mode fiber: ITU - T G. 652

Multi-mode fiber: ITU - T G.651

Standard: Telcordia GR-326-CORE

Standard housing, ceramic ferrule

Cable diameter: 3.0mm or 2.0mm or 0.9mm

Fiber type: 9/125μm, 62.5/125μm or 50/125μm or 10G

Insertion loss: SM less than 0.3 dB, MM less than 0.3dB

Return loss: PC SM larger than 45 dB

UPC SM larger than 50dB

APC SM larger than 60dB

UPC MM larger than 20dB

Repeatability: Less than 0.2 dB

Changeability: Less than 0.1 dB

Operating temperature range: -40 ~ 80°C

Storage temperature range: -40 ~80°C

Tensile strength: 100N

Min. bending radius: 35mm
