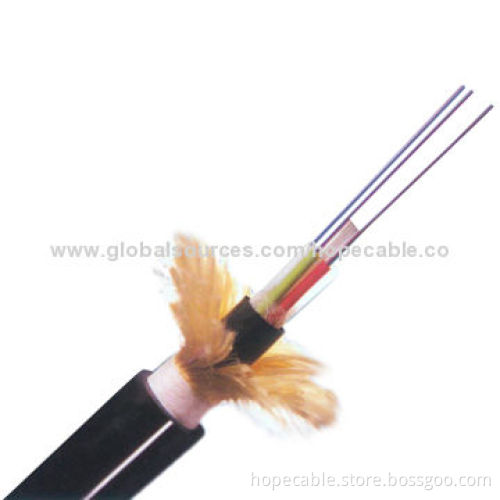

ADSS (All dielectric self-supporting aerial cable) is loose tube stranded

Fibers are positioned into a loose tube made of high modulus plastics

Tubes are filled with a water-resistant around FRP (fiber reinforced plastic) as a non-metallic central strength member into a compact and circular cable core

After the cable core is filled with filling compound, it is covered with a thin polyethylene (PE) inner sheath

After two layers of aramid yarns are applied in two directions over the inner sheath as strength member, the cable is completed with PE or AT (anti-tracking) outer sheath

Small cable dia, light weight, low attached load on tower

Tension strength is over 90kN

Non-metal structure, good insulation and anti-thunder

Fine production technology, even force for aramid fiber, with superior stress flexibility

Anti-gun fire

Anti-electro corrosion

Adapt for bad climate

Can construct without power cut, a power line failure doesn’t influence cable’s normal transfer

Loose cover GYTA cable core, non-metallic core reinforced

Tension units are elastic modulus aramid fiber

Good ultraviolet radiation resistant property

Can be installed without shutting off the power
