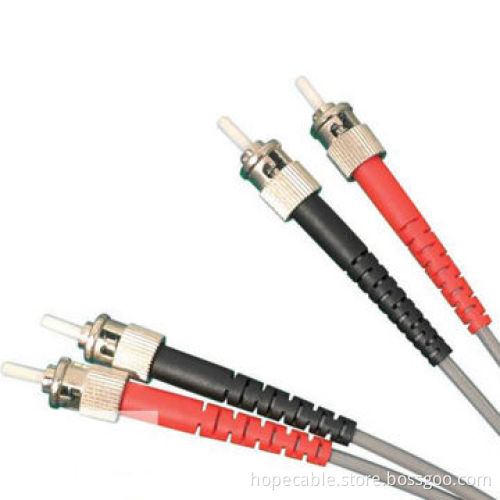

ST Multimode Fiber Optic Pigtail with 100N tensile strength

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, L/C, Western Union

Product Description

Application:

PC, UPC or APC polishing
Fiber Standards:
- Single mode fiber: ITU - T G. 652
- Multi mode fiber: ITU - T G.651

Characteristics:

PC, UPC or APC polishing

Fiber Standards:

Single mode fiber: ITU - T G. 652

Multi mode fiber: ITU - T G.651

Standard: Telcordia GR-326-CORE

Standard housing, ceramic ferrule

Cable diameter: 3.0mm or 2.0mm or 0.9mm

Fiber type: 9/125μm, 62.5/125μm or 50/125μm or 10G

Insertion loss: SM Less than 0.3 dB, MM Less than 0.3dB

Return loss: PC SM larger than 45 dB

ST Fiber optic pigtails specifications

UPC SM larger than 50dB

APC SM larger than 60dB

UPC MM larger than 20dB

Repeatability: less than 0.2 dB

Changeability: less than 0.1 dB

Operating temperature range: -40 to 80 deg. C

Storage temperature range: -40 to 80 deg. C

Tensile strength: 100N

Min. bending radius: 35mm
