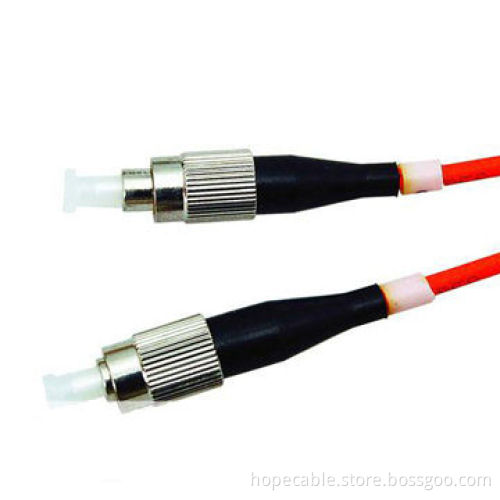

Multiple-mode Duplex Fiber Optic FC Pigtails or Cable
  • Multiple-mode Duplex Fiber Optic FC Pigtails or Cable
  • Multiple-mode Duplex Fiber Optic FC Pigtails or Cable
  • Multiple-mode Duplex Fiber Optic FC Pigtails or Cable
  • Multiple-mode Duplex Fiber Optic FC Pigtails or Cable
  • Multiple-mode Duplex Fiber Optic FC Pigtails or Cable
  • Multiple-mode Duplex Fiber Optic FC Pigtails or Cable
  • Multiple-mode Duplex Fiber Optic FC Pigtails or Cable
  • Multiple-mode Duplex Fiber Optic FC Pigtails or Cable
Multiple-mode Duplex Fiber Optic FC Pigtails or Cable
Multiple-mode Duplex Fiber Optic FC Pigtails or Cable
Multiple-mode Duplex Fiber Optic FC Pigtails or Cable
Multiple-mode Duplex Fiber Optic FC Pigtails or Cable
Multiple-mode Duplex Fiber Optic FC Pigtails or Cable
Multiple-mode Duplex Fiber Optic FC Pigtails or Cable
Multiple-mode Duplex Fiber Optic FC Pigtails or Cable
Multiple-mode Duplex Fiber Optic FC Pigtails or Cable

Multiple-mode Duplex Fiber Optic FC Pigtails or Cable

Get Latest Price
Payment Type:
T/T, L/C, Western Union
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T, L/C, Western Union
Product Description
Product Description
  • Applications: PC, UPC or APC polishing
  • Fiber standards:
    • Single mode fiber: ITU - T G. 652
    • Multiple mode fiber: ITU - T G.651
  • Characteristics:
    • Standard: Telcordia GR-326-CORE
    • Standard housing, ceramic ferrule
    • Cable diameters: 3.0mm or 2.0mm or 0.9mm
    • Fiber type: 9/125μm, 62.5/125μm or 50/125μm or 10G
    • Insertion loss: SM less than 0.3dB, MM less than 0.3dB
    • Return loss: PC SM larger than 45dB
  • Specifications:
    • UPC SM larger than 50dB
    • APC SM larger than 60dB
    • UPC MM larger than 20dB
    • Repeatability: Less than 0.2dB
    • Changeability: Less than 0.1dB
    • Operating temperature range: -40-80°C
    • Storage temperature range: -40-80°C
    • Tensile strength: 100N
    • Min. bending radius: 35mm
  • Single mode fiber: ITU - T G. 652
  • Multiple mode fiber: ITU - T G.651
  • Standard: Telcordia GR-326-CORE
  • Standard housing, ceramic ferrule
  • Cable diameters: 3.0mm or 2.0mm or 0.9mm
  • Fiber type: 9/125μm, 62.5/125μm or 50/125μm or 10G
  • Insertion loss: SM less than 0.3dB, MM less than 0.3dB
  • Return loss: PC SM larger than 45dB
  • UPC SM larger than 50dB
  • APC SM larger than 60dB
  • UPC MM larger than 20dB
  • Repeatability: Less than 0.2dB
  • Changeability: Less than 0.1dB
  • Operating temperature range: -40-80°C
  • Storage temperature range: -40-80°C
  • Tensile strength: 100N
  • Min. bending radius: 35mm
