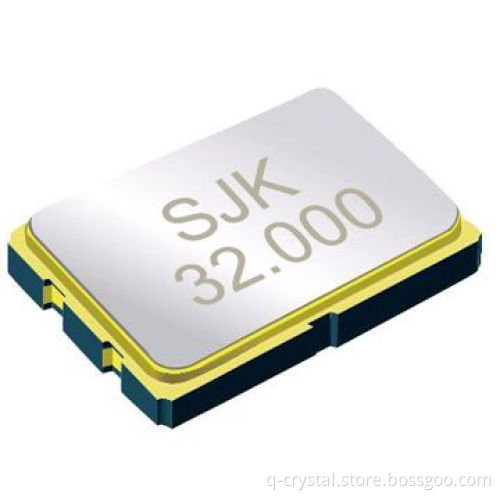

5 x 7mm Crystal Resonator/SMD Crystal Resonator/Crystal Resonator, 10 to 100W Drive Level
- Payment Type:
- Telegraphic Transfer (TT, T/T)
Your message must be between 20 to 2000 characters
Contact Now| Payment Type: | Telegraphic Transfer (TT,T/T) |
|---|
- Frequency range: 6.000 to 110.000MHz
- Equivalent series resistance (ESR): 100/80/75/70/60/40Ohms
- Frequency tolerance: ±10, ±20, ±30ppm orspecify (at 25 degrees Celsius)
- Frequency stability: ±10, ±20, ±30ppm orspecify
- Operating temperature range: -10 to +60, -20 to +70 and -40 to+85 degrees Celsius
- Storage temperature range: -40 to +85 degrees Celsius
- Shunt capacitance: 7pF (maximum)
- Drive level: 10 to 100¼W
- Load capacitance: series, 16, 20, 30 and 32pF or specify
- Aging: ±1, ±3ppm/year
- Size: 7.0 x 5.0mm
- Seam sealed ceramic surface mount
