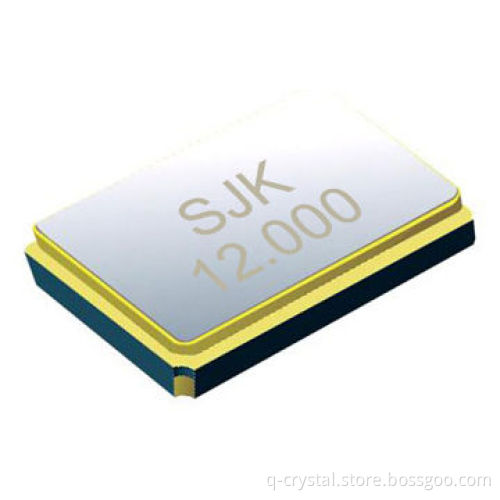

SMD Crystal Resonator, 2-pin Type, High Frequency Range, High Frequency Stability, RoHS Compliant

Get Latest Price

Payment Type:: Telegraphic Transfer (TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Features:

Thickness: 1.0mm ultra-thin
Leadless type
Automatic mounting
Embossed taping specification
Reflow soldering

Specifications:

Model: SMD crystal resonator 6035
Output frequency range: 8 to 80MHz
Frequency tolerance: ±30 to ±50ppm, specify (at25°C)
Frequency stability over operating temperature: ±30 to±50ppm, specify
Storage temperature range: -55 to 125°C
Operating temperature range: -10 to 60, -20 to 70 and -40 to+85°C
Shunt capacity (C0): 5.0pF (maximum)
Drivel level: 10 to 100¼W
Load capacitance: series, 16, 20, 30, 32pF or specify (CL)
Aging: ±3ppm/year (at 25°C)
Compliant: RoHS, Pb free
Size: 6.0 x 3.5mm
Pin: 2-pin
Shock resistance: drop test of 3 times on 2mm stainless platefrom 75cm height

Applications:

Touch screens, EMS (electronics manufacturing services)factories, industrial controls, Mobile phones, communicationsequipment, terminal equipment and more

Thickness: 1.0mm ultra-thin

Leadless type

Automatic mounting

Embossed taping specification

Reflow soldering

Model: SMD crystal resonator 6035

Output frequency range: 8 to 80MHz

Frequency tolerance: ±30 to ±50ppm, specify (at25°C)

Frequency stability over operating temperature: ±30 to±50ppm, specify

Storage temperature range: -55 to 125°C

Operating temperature range: -10 to 60, -20 to 70 and -40 to+85°C

Shunt capacity (C0): 5.0pF (maximum)

Drivel level: 10 to 100¼W

Load capacitance: series, 16, 20, 30, 32pF or specify (CL)

Aging: ±3ppm/year (at 25°C)

Compliant: RoHS, Pb free

Size: 6.0 x 3.5mm

Pin: 2-pin

Shock resistance: drop test of 3 times on 2mm stainless platefrom 75cm height

Touch screens, EMS (electronics manufacturing services)factories, industrial controls, Mobile phones, communicationsequipment, terminal equipment and more
