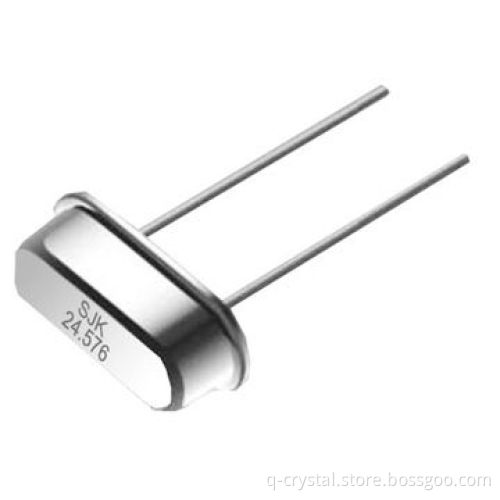

Crystal Resonator Series, High Frequency Range from 3 to 100MHz, High-frequency Stability

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Features:

Electrical specifications:

Applications:

PC, USB devices, game joysticks, UPSs, amplifiers, hometheaters and more electronic products

Height: 3.5mm

Volume is compact at about one-fourth of the former product(hc-49u)

A resistance weld completely sealed type

Frequency stability is good, the reliability is high

Copes with high density mounting and is the optimum for massproduction

High precision characteristic covering up to high frequencyrange

Compliant with RoHS, PB-free and REACH standards

Frequency range: 3 to 100MHz

Equivalent series resistance (ESR): 30 to 150©

Frequency tolerance (at 25°C): ±30ppm orspecify

Frequency stability: ±30ppm or specify

Operating temperature range: -10 to +60°C, -20 to +70°Cand -40 to +85°C

Storage temperature range: -40 to +85°C

Shunt capacitance. 7pF

Drive level: 100¼W

Load capacitance: series, 16, 20, 30, 32pF or specify

PC, USB devices, game joysticks, UPSs, amplifiers, hometheaters and more electronic products
