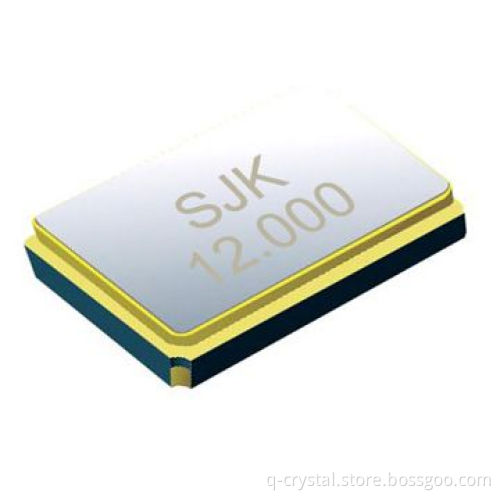

SMD Crystal 3225 Series, Small Size, High Frequency Stability and Reliability, Green Products

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Features:

Ultra-thin, thickness 1.0mm

Leadless type, green product, RoHS and Pb-free compliant

High precision characteristic covering up to high frequencyrange

Designed for automatic mounting and reflow soldering

Emboss taping specifications

Small size, 3.2 x 2.5mm with surface mount package

High frequency stability and reliability

Specifications:

Model: SMD crystal 3225 series

Frequency: 12 to 48MHz

Frequency stability: ±10ppm to ±30ppm orspecify

Operating temperature range: -10 to +60, -20 to +70 and -40 to+85°C

Storage temperature range: -40 to +85°C

Load capacitance: 16, 20, 30, 32pF or specify

Drive level: 10 to 100¼W

ESR: 80/60Ω

Shunt capacitance: 5.0pF maximum

Applications:

Bluetooth, smartphone, wireless communications, PDA, DSN, PCs,mobile phone, pad, telephone, WLAN device and more
