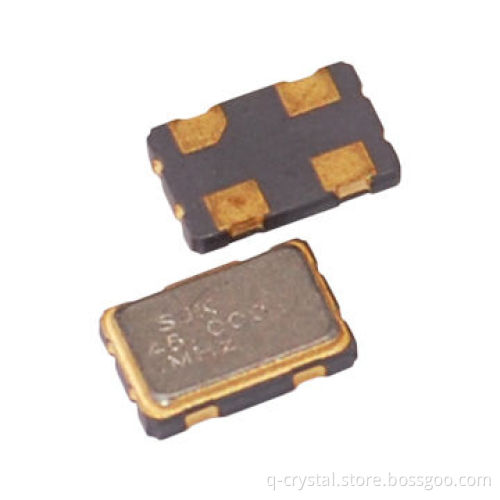

5032 SMD Quartz Crystals with 5032 Size, 50MHz High-frequency Output, 3.3V Low-supply Voltage

Get Latest Price

Payment Type:: Telegraphic Transfer (TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Features:

Small seam sealed clock crystal oscillator units
High-precision characteristic covering up to wide frequencyrange
Designed for automatic mounting and re-flow soldering
3-state function available
Supply voltage range: 1.8 up to 5.0V
Low-phase, low-current consumption
RoHS compliant and Pb-free

Electrical specifications:

Model: 5032 SMD quartz oscillator (7N series SMD quartzoscillators)
Frequency: 50MHz (1.544 up to 125MHz)
Frequency stability: ±30ppm
Supply voltage: 3.3V (1.8 up to 5.0V)
Operating temperature range: -40 to +85
Storage temperature range: -55 to +125
Current consumption: 10mA (maximum)
Symmetry: 40-60%
Start-up time: 5ms (maximum)
Phase jitter: 1 phase (maximum)
Output type: CMOS
Output loading: 15pF
Size: 5.0 x 3.2 x 1.2mm

Main applications: wireless communication set, PDA, DSC,automatic multi-function devices, GPS, PCs, peripherals, gamingequipment, DVDs, Blu-ray disks, TVs, HDTV, DVC, HDDs, camerasmodules, telecommunications and more

Small seam sealed clock crystal oscillator units

High-precision characteristic covering up to wide frequencyrange

Designed for automatic mounting and re-flow soldering

3-state function available

Supply voltage range: 1.8 up to 5.0V

Low-phase, low-current consumption

RoHS compliant and Pb-free

Model: 5032 SMD quartz oscillator (7N series SMD quartzoscillators)

Frequency: 50MHz (1.544 up to 125MHz)

Frequency stability: ±30ppm

Supply voltage: 3.3V (1.8 up to 5.0V)

Operating temperature range: -40 to +85

Storage temperature range: -55 to +125

Current consumption: 10mA (maximum)

Symmetry: 40-60%

Start-up time: 5ms (maximum)

Phase jitter: 1 phase (maximum)

Output type: CMOS

Output loading: 15pF

Size: 5.0 x 3.2 x 1.2mm
