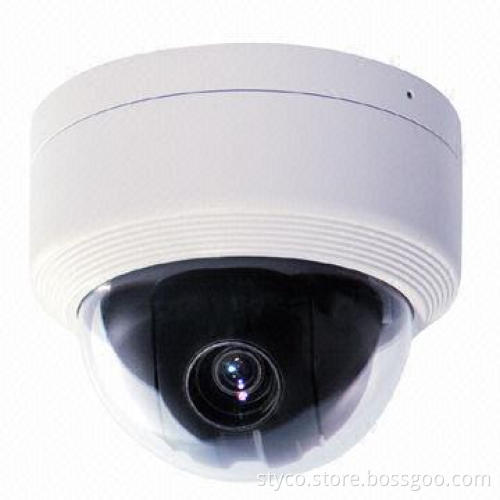

Mini Speed Dome Camera, 3.8 to 38mm Lens, Samsung 10x Camera, Auto ICR Switch, Auto Color to B/W

Get Latest Price

Payment Type:: T/T, L/C and Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, L/C and Western Union

Product Description

Features:

10x optical and digital zoom
0.05°/second
Pan or tile speeds are available
Maximum of 360°/second
High-speed pan or tilt motion
Supports IR cut day and night function
OSD menu to set speed dome functions
Provides keyboard shortcuts operating
Supports privacy zone function
Compact and minimum structure

Specifications:

Rated power supply: 12V DC/0.8A
CCD: 1/4-inch interline transfer
Horizontal resolution:
- Color: 500TVL
- B/W: 570TVL
Lens focal length (F 1.8) F: 3.8 to 38mm
Maximum pixels:
- NTSC: 811 x 508 and 410K
- PAL: 795 x 596 and 470K
Effective pixels:
- NTSC: 768 x 494 and 380K
- PAL: 752 x 582 and 440K
S/N ratio: 50dB (AGC off)
Minimum illumination: 0.7 Lux (color), 0.02 Lux (B/W) and 50 IRE
Automatic, day and night (ICR)
Focus: automatic, manual and semi-automatic
Iris: automatic and manual
Shutter speed: 128 x 1/120,000 seconds
AGC: normal, high and off
White balance: automatic and manual (red, blue gain adjustable)
BLC: low, middle, high and off
Flicker less: selectable
SSNR: low, middle, high and off
Pan or tilt range:
- Pan: 360° (endless)
- Tilt: 180° (auto flip) and 95° (normal)
Pan or tilt speed:
- Preset: 360°
- Manual: 0.05 to 360°/second (proportional to zoom)
Swing: 1 to 180°
Preset: 127 (label and camera image setting)
Patterns: 4, 1,200 commands (about 5 minutes)/pattern
Swing: 8
Groups: 8 (20 action entities/group)
Other functions: auto flip, automatic parking and power-up action
Communication: RS-485
Protocols: Pelco-D and Pelco-P (selectable)
Privacy zones: 4
Alarm inputs: 4
OSD: menu/PTZ information
Operating temperatures: -10 to 50°C
Dimensions: 147.51 x 41mm
Weight: about 2kg

10x optical and digital zoom

0.05°/second

Pan or tile speeds are available

Maximum of 360°/second

High-speed pan or tilt motion

Supports IR cut day and night function

OSD menu to set speed dome functions

Provides keyboard shortcuts operating

Supports privacy zone function

Compact and minimum structure

Rated power supply: 12V DC/0.8A

CCD: 1/4-inch interline transfer

Horizontal resolution:

Color: 500TVL
B/W: 570TVL

Lens focal length (F 1.8) F: 3.8 to 38mm

Maximum pixels:

NTSC: 811 x 508 and 410K
PAL: 795 x 596 and 470K

Effective pixels:

NTSC: 768 x 494 and 380K
PAL: 752 x 582 and 440K

S/N ratio: 50dB (AGC off)

Minimum illumination: 0.7 Lux (color), 0.02 Lux (B/W) and 50 IRE

Automatic, day and night (ICR)

Focus: automatic, manual and semi-automatic

Iris: automatic and manual

Shutter speed: 128 x 1/120,000 seconds

AGC: normal, high and off

White balance: automatic and manual (red, blue gain adjustable)

BLC: low, middle, high and off

Flicker less: selectable

SSNR: low, middle, high and off

Pan or tilt range:

Pan: 360° (endless)
Tilt: 180° (auto flip) and 95° (normal)

Pan or tilt speed:

Preset: 360°
Manual: 0.05 to 360°/second (proportional to zoom)

Swing: 1 to 180°

Preset: 127 (label and camera image setting)

Patterns: 4, 1,200 commands (about 5 minutes)/pattern

Swing: 8

Groups: 8 (20 action entities/group)

Other functions: auto flip, automatic parking and power-up action

Communication: RS-485

Protocols: Pelco-D and Pelco-P (selectable)

Privacy zones: 4

Alarm inputs: 4

OSD: menu/PTZ information

Operating temperatures: -10 to 50°C

Dimensions: 147.51 x 41mm

Weight: about 2kg

Color: 500TVL

B/W: 570TVL

NTSC: 811 x 508 and 410K

PAL: 795 x 596 and 470K

NTSC: 768 x 494 and 380K

PAL: 752 x 582 and 440K

Pan: 360° (endless)

Tilt: 180° (auto flip) and 95° (normal)

Preset: 360°

Manual: 0.05 to 360°/second (proportional to zoom)
