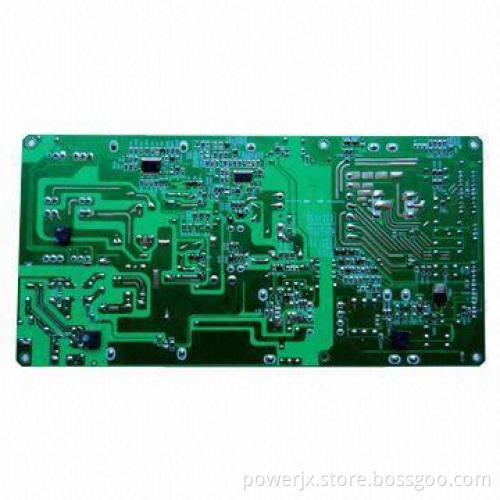

Open Frame Power Supply with 24V DC Output Voltage and 5,000mA Output Current

Open Frame Power Supply with 24V DC Output Voltage and 5,000mA Output Current

Get Latest Price

Payment Type:: Telegraphic Transfer in Advance (Advance TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Input voltage: AC 100 to 240V AC, 50 to 60Hz, 3A maximum

PF: 0.98

Output maximum power: 280W

Output voltages:

DC 5VSB, 2A
DC 5V, 4A
DC 12V, 5A
DC 24V, 5A

Ripple wave (mVp-p): ≤100mV

Starting time: ≤3s (100V AC input, full load)

Guarding time: ≥20ms (240V AC input, full load)

High efficiency, high reliability, natural cooling

High reliability: ultra no-load/standby power consumption, meet green power requirements

Light- and power-saving

Application: set-top box, monitor, LCD/LED TV and more

Designs and manufacture precess compliant to RoHS

Environmental:

Operating temperature: 0 to 45°C
Operating humidity: 5 to 90% RH non-condensing
Storage humidity: -20 to 85°C
Storage humidity: 5 to 95% RH non-condensing
Altitude: less than 3000m

Protections:

Over-voltage
Over-current
Short-circuit
Over-thermal

Reliability:

Dielectric strength: AC 1,500V, 1 minute or AC 1,800V, 1 second
Insulation resistance:
- Input to output: ≥50MΩ, at 500V DC
Leakage current: less than 0.25mA, at 264V AC
MTBF: meet MIL-HDBK-217F, over 100k hours, full load, 25°C

DC 5VSB, 2A

DC 5V, 4A

DC 12V, 5A

DC 24V, 5A

Operating temperature: 0 to 45°C

Operating humidity: 5 to 90% RH non-condensing

Storage humidity: -20 to 85°C

Storage humidity: 5 to 95% RH non-condensing

Altitude: less than 3000m

Over-voltage

Over-current

Short-circuit

Over-thermal

Dielectric strength: AC 1,500V, 1 minute or AC 1,800V, 1 second

Insulation resistance:

Input to output: ≥50MΩ, at 500V DC

Leakage current: less than 0.25mA, at 264V AC

MTBF: meet MIL-HDBK-217F, over 100k hours, full load, 25°C

Input to output: ≥50MΩ, at 500V DC
