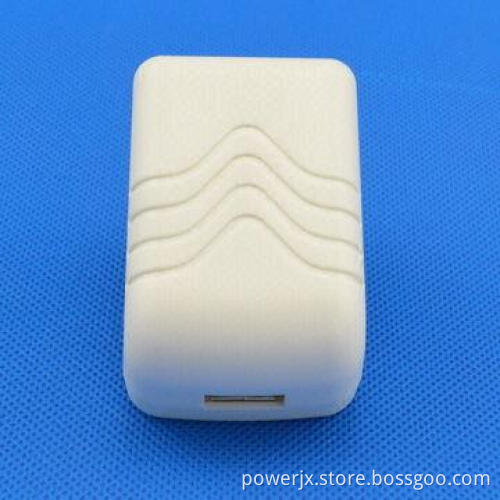

5V 2A Power Supply with USB
  • 5V 2A Power Supply with USB
  • 5V 2A Power Supply with USB
5V 2A Power Supply with USB
5V 2A Power Supply with USB

5V 2A Power Supply with USB

Get Latest Price
Payment Type:
Telegraphic Transfer in Advance (Advance TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer in Advance (Advance TT, T/T)
Product Description
Product Description
  • Features:
    • High efficiency, ultrasonic lamination, natural cooling
    • High reliability, ultra no-load/standby power consumption, meets green power requirements
    • Light and convenient plug in
    • Online LED power indicator
    • CE, CB, UL, FCC, CCC, GS, KS, SAA tests available
    • Suitable for CD/DVD/MP3/MP4 players, digital cameras, communication terminals and more
  • Specifications:
    • Brand name: OEM/ODM
    • Color: as shown
    • Label: customized
    • MOQ: 100pcs
    • Warranty: 3 years
    • Input:
      • Input voltage: AC 90 to 264V, 50 to 60Hz
      • Rated voltage: 100 to 240V
      • Input current: 0.5A maximum
      • Inrush current: ≤20A
      • Leakage current:
      • Output:
        • Maximum power: 10W
        • Output voltage: DC 5V ±5%
        • Ripple wave (mVp-p): ≤100mV
        • Linear modulate: ±5% maximum
        • Temperature coefficient: ±0.02%/°C
        • Start time: ≤3s (100V AC input, full load)
        • Guard time: ≥20ms (240V AC input, full load)
        • Output standard: 5V 2A
      • Protection:
        • Override protection: 115 to 200%vA, automatic recovery
        • Short-circuit protection: 1 channel: automatic recovery
      • Insulation:
        • Insulation strength: 3000V AC/5mA, 1 minute
        • Insulation resistance: ≥30MΩ, DC 500V
      • Environment:
        • Working temperature: 0 to 40°C, 20 to 90% RH non-condensing
        • Storage temperature: -20 to 80°C, 20 to 90% RH non-condensing
      • Safety standards: GB4943-2001, IEC60950, UL, CCC, FCC, GS, CK
      • EMC: En55022
      • Efficiency: ≥80%
      • Size (L x W x H): 62 x 41.5 x 29mm
      • Packaging: polybag packaging, color box packaging, blister packaging or customized
      • Delivery lead time: 7 to 12 working days
  • High efficiency, ultrasonic lamination, natural cooling
  • High reliability, ultra no-load/standby power consumption, meets green power requirements
  • Light and convenient plug in
  • Online LED power indicator
  • CE, CB, UL, FCC, CCC, GS, KS, SAA tests available
  • Suitable for CD/DVD/MP3/MP4 players, digital cameras, communication terminals and more
  • Brand name: OEM/ODM
  • Color: as shown
  • Label: customized
  • MOQ: 100pcs
  • Warranty: 3 years
  • Input:
    • Input voltage: AC 90 to 264V, 50 to 60Hz
    • Rated voltage: 100 to 240V
    • Input current: 0.5A maximum
    • Inrush current: ≤20A
    • Leakage current:
    • Output:
      • Maximum power: 10W
      • Output voltage: DC 5V ±5%
      • Ripple wave (mVp-p): ≤100mV
      • Linear modulate: ±5% maximum
      • Temperature coefficient: ±0.02%/°C
      • Start time: ≤3s (100V AC input, full load)
      • Guard time: ≥20ms (240V AC input, full load)
      • Output standard: 5V 2A
    • Protection:
      • Override protection: 115 to 200%vA, automatic recovery
      • Short-circuit protection: 1 channel: automatic recovery
    • Insulation:
      • Insulation strength: 3000V AC/5mA, 1 minute
      • Insulation resistance: ≥30MΩ, DC 500V
    • Environment:
      • Working temperature: 0 to 40°C, 20 to 90% RH non-condensing
      • Storage temperature: -20 to 80°C, 20 to 90% RH non-condensing
    • Safety standards: GB4943-2001, IEC60950, UL, CCC, FCC, GS, CK
    • EMC: En55022
    • Efficiency: ≥80%
    • Size (L x W x H): 62 x 41.5 x 29mm
    • Packaging: polybag packaging, color box packaging, blister packaging or customized
    • Delivery lead time: 7 to 12 working days
  • Input voltage: AC 90 to 264V, 50 to 60Hz
  • Rated voltage: 100 to 240V
  • Input current: 0.5A maximum
  • Inrush current: ≤20A
  • Leakage current:
  • Output:
    • Maximum power: 10W
    • Output voltage: DC 5V ±5%
    • Ripple wave (mVp-p): ≤100mV
    • Linear modulate: ±5% maximum
    • Temperature coefficient: ±0.02%/°C
    • Start time: ≤3s (100V AC input, full load)
    • Guard time: ≥20ms (240V AC input, full load)
    • Output standard: 5V 2A
  • Protection:
    • Override protection: 115 to 200%vA, automatic recovery
    • Short-circuit protection: 1 channel: automatic recovery
  • Insulation:
    • Insulation strength: 3000V AC/5mA, 1 minute
    • Insulation resistance: ≥30MΩ, DC 500V
  • Environment:
    • Working temperature: 0 to 40°C, 20 to 90% RH non-condensing
    • Storage temperature: -20 to 80°C, 20 to 90% RH non-condensing
  • Safety standards: GB4943-2001, IEC60950, UL, CCC, FCC, GS, CK
  • EMC: En55022
  • Efficiency: ≥80%
  • Size (L x W x H): 62 x 41.5 x 29mm
  • Packaging: polybag packaging, color box packaging, blister packaging or customized
  • Delivery lead time: 7 to 12 working days
  • Maximum power: 10W
  • Output voltage: DC 5V ±5%
  • Ripple wave (mVp-p): ≤100mV
  • Linear modulate: ±5% maximum
  • Temperature coefficient: ±0.02%/°C
  • Start time: ≤3s (100V AC input, full load)
  • Guard time: ≥20ms (240V AC input, full load)
  • Output standard: 5V 2A
  • Override protection: 115 to 200%vA, automatic recovery
  • Short-circuit protection: 1 channel: automatic recovery
  • Insulation strength: 3000V AC/5mA, 1 minute
  • Insulation resistance: ≥30MΩ, DC 500V
  • Working temperature: 0 to 40°C, 20 to 90% RH non-condensing
  • Storage temperature: -20 to 80°C, 20 to 90% RH non-condensing
