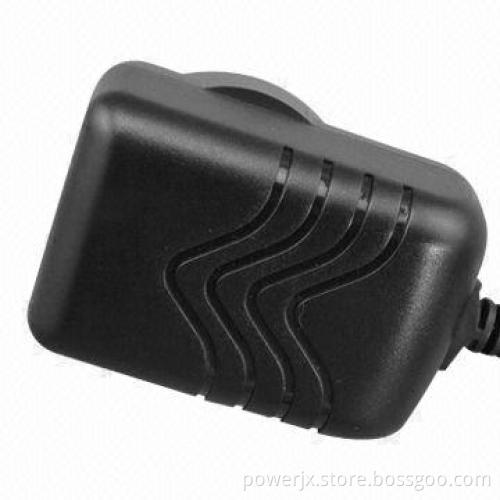

5V 2A AC/DC Switching Power Adapter with Australian Plug CE, CB, FCC, UL, CCC Marks

5V 2A AC/DC Switching Power Adapter with Australian Plug CE, CB, FCC, UL, CCC Marks

Get Latest Price

Payment Type:: Telegraphic Transfer in Advance (Advance TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Features:

High-efficiency, ultrasonic lamination, natural cooling
High-reliability, ultra no-load/standby power consumption, meets green power requirements
Light and convenient plug in
Online LED power indicator
With CE, CB, UL, FCC, CCC, GS, KS, SAA tests are available
Suitable for CD/DVD/MP3/MP4 players, digital cameras, communication terminals and more

Specifications:

Color: as shown
Label: customized
MOQ: 100 pieces
Input:
- Input voltage: 90 to 264V AC, 50 to 60Hz
- Rated voltage: 100 to 240V
- Input current: 0.5A (maximum)
- Inrush current: ≤20A
- Leakage current:
- Output:
  - Maximum power: 10W
  - Output voltage: 5V DC ±5%
  - Ripple wave: ≤100mVp-p
  - Linear modulate: ±5% (maximum)
  - Temperature coefficient: ±0.02%/°C
  - Start time: ≤3 seconds (100V AC input, full load)
  - Guard time: ≥20ms (240V AC input, full load)
  - Output standard: 5V 2A
- Protections:
  - Override: 115 to 200%vA, automatic recovery
  - Short-circuit: 1 channel, automatic recovery
- Insulation:
  - Insulation strength: 3,000V AC/5mA, 1 minute
  - Insulation resistance: ≥30MΩ, 500V DC
- Environment:
  - Working temperature: 0 to 40°C, 20 to 90% RH non-condensing
  - Storage temperature: -20 to 80°C, 20 to 90% RH non-condensing
  - Safety standards: GB4943-2001, IEC60950, UL, CCC, FCC, GS, CK
  - EMC: EN55022
- Efficiency: ≥80%
- Size (L x W x H): 62 x 41.5 x 29mm
- Delivery lead-time: 7 to 12 working days
- Packing: polybag, color box, blister or customized
