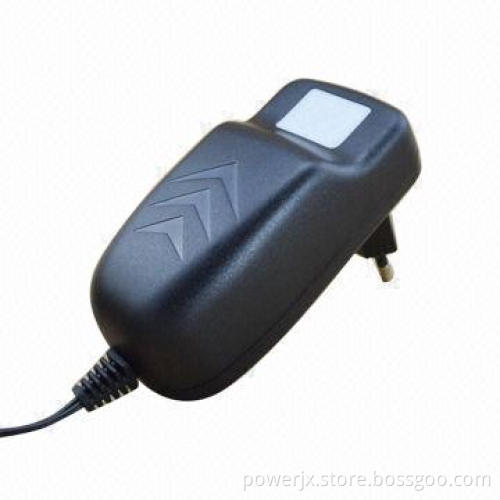

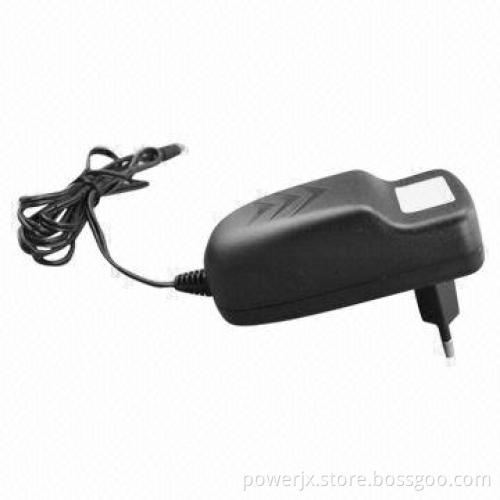

Universal 5V/7.5V/9V/12V/24V/12V/1A AC Power Adapter with OVP, OCP and SCP Protections

Universal 5V/7.5V/9V/12V/24V/12V/1A AC Power Adapter with OVP, OCP and SCP Protections

Get Latest Price

Payment Type:: Telegraphic Transfer in Advance (Advance TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Input: 100 to 240V AC

Line frequency: 50/60Hz

Output voltage: 12.0V DC

Output current: 1000mA DC

Protections: OVP, OCP and SCP

Safety: CE, CB and CCC

DC connector: 2.1 x 5.5 x 10/12mm

Cord length: 1.5/1.8/1.95m or customized

Ripple and noise: 1% maximum (peak to peak)

Transistant response: 0.5ms for 50% load change (typically)

Standby model LED green: power is on

Topology: switching-fixed frequency fly back

Withstand: primary to secondary

Features:

105°C output capacitor
AC input range selectable by switch
Protections: short-circuit/overload/over-voltage
High efficiency and low operation temperature
Soft-start current can reduce the AC input impact effectively
PWM control and regulated
100% full-load burn-in test
Installed with EMI filter, minimum wave
Fixed switching frequency at 25KHz
Low price and high reliability
MOQ: 50pcs
Delivery time: 7 to 10 days
High-quality
Warranty: 1yr

Applications: MP3/MP4 players, mobile phone charger, laptop, computer, DV, LCD/TFT TVs, LED, digital camera, PDA, DVD players, other A/V products, portable game system, electronic toys, security/surveillance equipment, small home appliances, FHKD/VMIC/CRESUN, other IT products and more

105°C output capacitor

AC input range selectable by switch

Protections: short-circuit/overload/over-voltage

High efficiency and low operation temperature

Soft-start current can reduce the AC input impact effectively

PWM control and regulated

100% full-load burn-in test

Installed with EMI filter, minimum wave

Fixed switching frequency at 25KHz

Low price and high reliability

MOQ: 50pcs

Delivery time: 7 to 10 days
