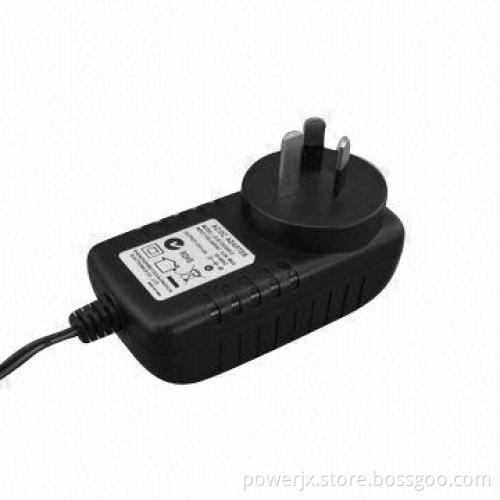

2012 Hottest Adapter with Australia Plug and 24W Power
  • 2012 Hottest Adapter with Australia Plug and 24W Power
  • 2012 Hottest Adapter with Australia Plug and 24W Power
2012 Hottest Adapter with Australia Plug and 24W Power
2012 Hottest Adapter with Australia Plug and 24W Power

2012 Hottest Adapter with Australia Plug and 24W Power

Get Latest Price
Payment Type:
Telegraphic Transfer in Advance (Advance TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer in Advance (Advance TT, T/T)
Product Description
Product Description
  • High efficiency, ultrasonic lamination, natural cooling
  • High reliability, ultra no-load/standby power
  • Consumption, meets green power requirements
  • Light and convenient plug-in
  • Application: suitable for CD/DVD, digital camera, communication terminals and more
  • Online LED power indicator
  • Specifications:
    • 24W plug in switching power supply
    • Output: 8V/3A, 12V/2A, 24W
    • Approvals: CE, CB, FCC, CCC, UL, GS and SAA
    • Plug type: Europe, US, UK, Australia, China
    • Guarantee: 3 years warranty
  • Features:
    • Input:
      • Input voltage: 90 to 264V AC, 50 to 60Hz
      • Rate voltage: 100 to 240V
      • Input current: 0.5A maximum
      • Inrush current: ≤20A
      • Leakage current:
      • Output:
        • Output maximum power: 24W
        • Output voltage: 8V DC ± 5%
        • Ripple wave (mV p-p): ≤100mV
        • Linear modulate: ±5% maximum
        • Temperature coefficient: ±0.02%/°C
        • Start time: ≤3s (100V AC input, full load)
        • Guard time: ≥20ms (240V AC input, full load)
        • Output standard: 8V/3A
      • Protection:
        • Override protection: 115 to 200%VA, automatic recovery
        • Short-circuit protection: 1 channel, automatic recovery
      • Insulation:
        • Insulation strength: 3000V AC/5mA, 1 minute
        • Insulation resistance: ≥30MΩ, 500V DC
      • Environment:
        • Working temperature: 0 to 40°C, 20 to 90% RH, non-condensing
        • Store temperature: -20 to 80°C, 20 to 90% RH, non-condensing
      • Standards:
        • Safety standards: GB4943-2001 IEC60950
        • EMC: En55022
      • Efficiency: ≥80%
      • Size (L x W x H): 93.5 x 46.5 x 33mm
      • Packaging: polybag, color box, blister or customized
      • Delivery lead time: within 5 to 12 working days after payment confirmation
  • 24W plug in switching power supply
  • Output: 8V/3A, 12V/2A, 24W
  • Approvals: CE, CB, FCC, CCC, UL, GS and SAA
  • Plug type: Europe, US, UK, Australia, China
  • Guarantee: 3 years warranty
  • Input:
    • Input voltage: 90 to 264V AC, 50 to 60Hz
    • Rate voltage: 100 to 240V
    • Input current: 0.5A maximum
    • Inrush current: ≤20A
    • Leakage current:
    • Output:
      • Output maximum power: 24W
      • Output voltage: 8V DC ± 5%
      • Ripple wave (mV p-p): ≤100mV
      • Linear modulate: ±5% maximum
      • Temperature coefficient: ±0.02%/°C
      • Start time: ≤3s (100V AC input, full load)
      • Guard time: ≥20ms (240V AC input, full load)
      • Output standard: 8V/3A
    • Protection:
      • Override protection: 115 to 200%VA, automatic recovery
      • Short-circuit protection: 1 channel, automatic recovery
    • Insulation:
      • Insulation strength: 3000V AC/5mA, 1 minute
      • Insulation resistance: ≥30MΩ, 500V DC
    • Environment:
      • Working temperature: 0 to 40°C, 20 to 90% RH, non-condensing
      • Store temperature: -20 to 80°C, 20 to 90% RH, non-condensing
    • Standards:
      • Safety standards: GB4943-2001 IEC60950
      • EMC: En55022
    • Efficiency: ≥80%
    • Size (L x W x H): 93.5 x 46.5 x 33mm
    • Packaging: polybag, color box, blister or customized
    • Delivery lead time: within 5 to 12 working days after payment confirmation
  • Input voltage: 90 to 264V AC, 50 to 60Hz
  • Rate voltage: 100 to 240V
  • Input current: 0.5A maximum
  • Inrush current: ≤20A
  • Leakage current:
  • Output:
    • Output maximum power: 24W
    • Output voltage: 8V DC ± 5%
    • Ripple wave (mV p-p): ≤100mV
    • Linear modulate: ±5% maximum
    • Temperature coefficient: ±0.02%/°C
    • Start time: ≤3s (100V AC input, full load)
    • Guard time: ≥20ms (240V AC input, full load)
    • Output standard: 8V/3A
  • Protection:
    • Override protection: 115 to 200%VA, automatic recovery
    • Short-circuit protection: 1 channel, automatic recovery
  • Insulation:
    • Insulation strength: 3000V AC/5mA, 1 minute
    • Insulation resistance: ≥30MΩ, 500V DC
  • Environment:
    • Working temperature: 0 to 40°C, 20 to 90% RH, non-condensing
    • Store temperature: -20 to 80°C, 20 to 90% RH, non-condensing
  • Standards:
    • Safety standards: GB4943-2001 IEC60950
    • EMC: En55022
  • Efficiency: ≥80%
  • Size (L x W x H): 93.5 x 46.5 x 33mm
  • Packaging: polybag, color box, blister or customized
  • Delivery lead time: within 5 to 12 working days after payment confirmation
  • Output maximum power: 24W
  • Output voltage: 8V DC ± 5%
  • Ripple wave (mV p-p): ≤100mV
  • Linear modulate: ±5% maximum
  • Temperature coefficient: ±0.02%/°C
  • Start time: ≤3s (100V AC input, full load)
  • Guard time: ≥20ms (240V AC input, full load)
  • Output standard: 8V/3A
  • Override protection: 115 to 200%VA, automatic recovery
  • Short-circuit protection: 1 channel, automatic recovery
  • Insulation strength: 3000V AC/5mA, 1 minute
  • Insulation resistance: ≥30MΩ, 500V DC
  • Working temperature: 0 to 40°C, 20 to 90% RH, non-condensing
  • Store temperature: -20 to 80°C, 20 to 90% RH, non-condensing
  • Safety standards: GB4943-2001 IEC60950
  • EMC: En55022
