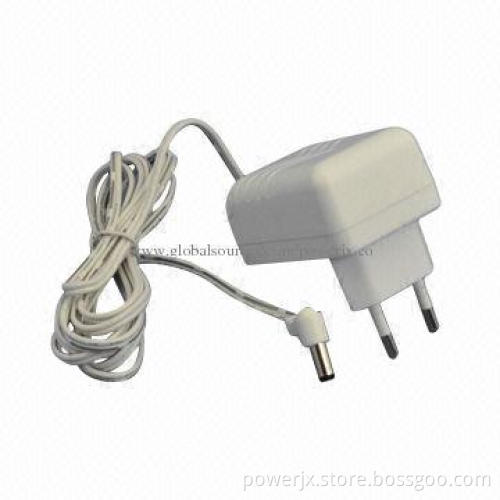

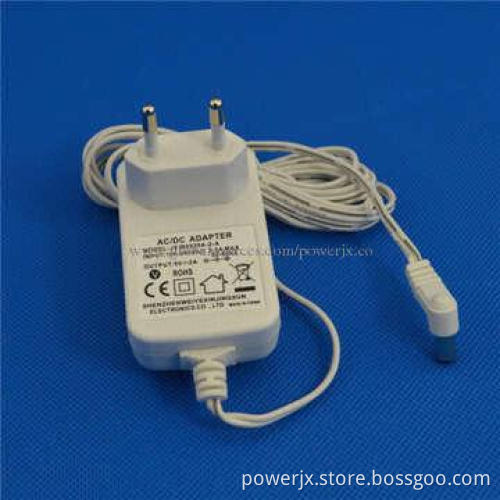

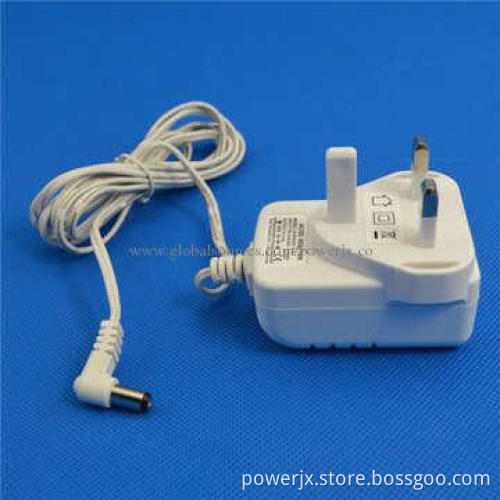

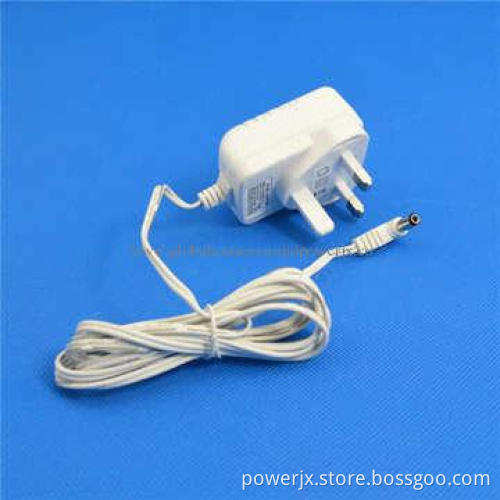

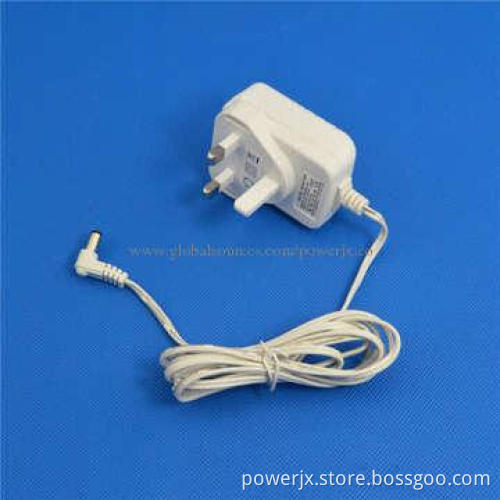

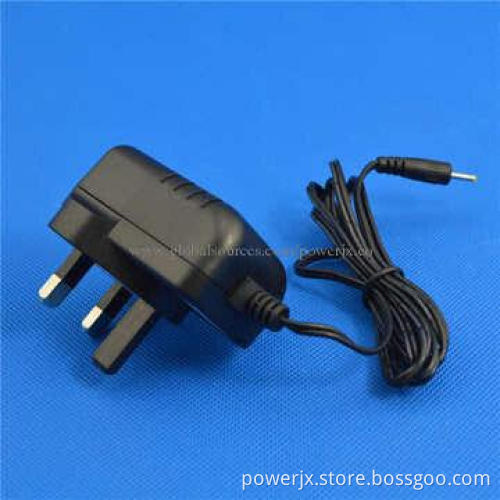

High current low voltage miniature power connectors with 1.2m cable

High current low voltage miniature power connectors with 1.2m cable

Get Latest Price

Payment Type:: Terms of payment:T/T, L/C , West Union, Paypal

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Terms of payment:T/T,L/C ,West Union,Paypal

Product Description

Product characteristics:

Inputs: 90-264V AC50/60Hz
Output power: 7.5W
Output voltage: 5V
Output current: 1.5A
Line regulation: ±5%max
Input current: 0.5Max
Inrush current: ≤20A
Leakage currnet: <1mA
Efficiency: ≥72%
Start time: ≤3s (100V AC input full load)
Guard time: ≥20ms (240V AC input, full load)
Insulation strength: 3,000V AC/5mA,1MIN
Insulation resistance: ≥30MΩ, DC 500V
Safety compliance standards: Certification UL, FCC, CE, CB and CCC approved

Reliability:

Average fault-free times under 25°C ambient temperature maximum working load
Average fault-free time 50,000 hours
(As per GB4943-2001 IEC60950 standards)

Environmental requirements:

Working temperatures: 0°C~40°C,20%~90%RH
Storage temperatures: -20°C~80°C,20%~90%RH
Moisture under non-condensing condition, moisture 5% - 95%

Tests:

Burn-in test: power supply shall be burn-in for 4 hours under normal input and 80-100% rated load at 40°C±5°C
Height: 1m,the product should be fall off on the hardwood with the thickness of 20mm and the hardwood shall be put on the base of the cement or on the ground without flexibility
Apply two times on all surface

6.1 dielectric strength (Hi-pot):

Primary to secondary: 3000V AC/5mAMax/3 seconds
6.2 leakage current: 0.2mA max.at 264V AC/50Hz
6.3 insulation resistance: 50M min. at primary to secondary add 500V DC test voltage

MTBF qualifications:

The MTBF shall be at least 50,000 hours at 25°C, full load and input condition (as per GB4943-2001 IEC60950 standards)
Short circuit protection: The input power shall decrease when the output rail short, the power supply shall not damage and shall be self-recovery when the fault condition is removed
Override protection: 115%~2

Inputs: 90-264V AC50/60Hz

Output power: 7.5W

Output voltage: 5V

Output current: 1.5A

Line regulation: ±5%max

Input current: 0.5Max

Inrush current: ≤20A

Leakage currnet: <1mA

Efficiency: ≥72%

Start time: ≤3s (100V AC input full load)

Guard time: ≥20ms (240V AC input, full load)

Insulation strength: 3,000V AC/5mA,1MIN

Insulation resistance: ≥30MΩ, DC 500V

Safety compliance standards: Certification UL, FCC, CE, CB and CCC approved

Average fault-free times under 25°C ambient temperature maximum working load

Average fault-free time 50,000 hours

(As per GB4943-2001 IEC60950 standards)

Working temperatures: 0°C~40°C,20%~90%RH

Storage temperatures: -20°C~80°C,20%~90%RH

Moisture under non-condensing condition, moisture 5% - 95%

Burn-in test: power supply shall be burn-in for 4 hours under normal input and 80-100% rated load at 40°C±5°C

Height: 1m,the product should be fall off on the hardwood with the thickness of 20mm and the hardwood shall be put on the base of the cement or on the ground without flexibility

Apply two times on all surface

Primary to secondary: 3000V AC/5mAMax/3 seconds

6.2 leakage current: 0.2mA max.at 264V AC/50Hz

6.3 insulation resistance: 50M min. at primary to secondary add 500V DC test voltage

The MTBF shall be at least 50,000 hours at 25°C, full load and input condition (as per GB4943-2001 IEC60950 standards)

Short circuit protection: The input power shall decrease when the output rail short, the power supply shall not damage and shall be self-recovery when the fault condition is removed

Override protection: 115%~2
