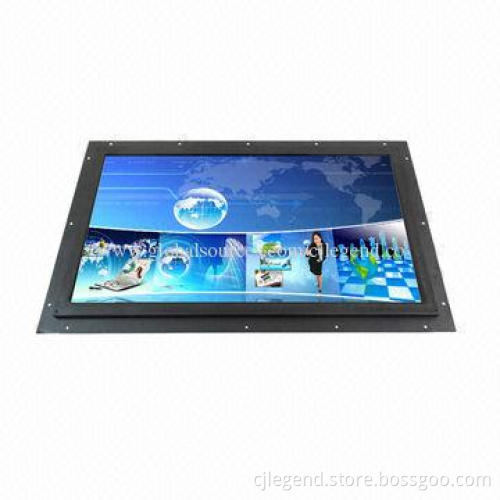

22-inch Open Frame Infrared Touch Screen Panel, Android OS

22-inch Open Frame Infrared Touch Screen Panel, Android OS

Get Latest Price

Payment Type:: T/T, L/C, Western Union or PayPal

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, L/C, Western Union or PayPal

Product Description

Display: LED panel
Resolution: 1,680 x 1,050 pixels
Aspect ratio: 16:9
Brightness: 450cd/m²
Contrast: 1,000:1
Color: 16.7M
Response time: 8ms
Viewing angles: 178/178°
Surface: 3-5mm toughened explosion-proof glass
Body process: open frame display with metal housing
Color: black (default), other color customizable
Processor: Freescale i, M x 6 ARM Cortex-A9 1.0GHz
Memory: 1GB DDR3, 4GB flash
Touch tech: IR touch or captive touch (optional)
Multiple-point: 2-point
Accuracy: ±2mm
Response time: ≤16ms
Writing: fingers, stylus pen, any opaque object
OS: Google's Android 4.2.2, Ubuntu, Linux 12.04
APP: I x touch, the third part Google's Android App
Working temperatures: 0 to 50°C
Storage temperatures: -20 to 65°C
Working humidity range: 20 to 90% RH
Storage humidity range: 10 to 90% RH
Power supplies: 110-240V AC, 50/60Hz
Switch: rocker
LAN interface: RJ45
USB: 4 x USB2.0
SD slot : SD card 8GB (standard)
Speaker: built-in 2 x 8Ω/3W speakers

Optional accessories:

Camera: 1.3 million pixels autofocus camera
Microphone: microphone mono microphone
Wi-Fi module: 802.11b/g/n, include antenna and more
Buttons: metal button (blue, red and green are available)
3G module: support global‐standard 3G/4G

Typical applications:

Exhibition site, at the gate of café, chain hotels, banks, dresser counter, schools, companies, supermarket goods shelf, glasses shelf, ATM machines, vending machines, freezer vending machines, water vending machines
Cellphone show case, hardware showrooms, digital showcases

Display: LED panel

Resolution: 1,680 x 1,050 pixels

Aspect ratio: 16:9

Brightness: 450cd/m²

Contrast: 1,000:1

Color: 16.7M

Response time: 8ms

Viewing angles: 178/178°

Surface: 3-5mm toughened explosion-proof glass

Body process: open frame display with metal housing

Color: black (default), other color customizable

Processor: Freescale i, M x 6 ARM Cortex-A9 1.0GHz

Memory: 1GB DDR3, 4GB flash

Touch tech: IR touch or captive touch (optional)

Multiple-point: 2-point

Accuracy: ±2mm

Response time: ≤16ms

Writing: fingers, stylus pen, any opaque object

OS: Google's Android 4.2.2, Ubuntu, Linux 12.04

APP: I x touch, the third part Google's Android App

Working temperatures: 0 to 50°C

Storage temperatures: -20 to 65°C

Working humidity range: 20 to 90% RH

Storage humidity range: 10 to 90% RH

Power supplies: 110-240V AC, 50/60Hz

Switch: rocker

LAN interface: RJ45

USB: 4 x USB2.0

SD slot : SD card 8GB (standard)

Speaker: built-in 2 x 8Ω/3W speakers

Camera: 1.3 million pixels autofocus camera

Microphone: microphone mono microphone

Wi-Fi module: 802.11b/g/n, include antenna and more

Buttons: metal button (blue, red and green are available)

3G module: support global‐standard 3G/4G

Exhibition site, at the gate of café, chain hotels, banks, dresser counter, schools, companies, supermarket goods shelf, glasses shelf, ATM machines, vending machines, freezer vending machines, water vending machines

Cellphone show case, hardware showrooms, digital showcases
