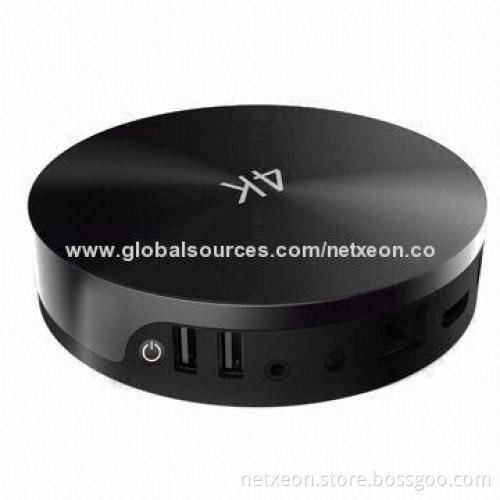

Amlogic S802/GPU Quad-core Mali-450/4K x 2K TV Set-top Box with Android 4.4 OS, Supports Dolby

Amlogic S802/GPU Quad-core Mali-450/4K x 2K TV Set-top Box with Android 4.4 OS, Supports Dolby

Get Latest Price

Payment Type:: Telegraphic Transfer in Advance (Advance TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

CPU: Amlogic S802 Quad-core 2.0G (Cortex-A9)

GPU: Octo-core Mali-450 GPU

4K x 2K S82

RAM:

DDR3 2GB (256 x 16 x 4), priority

ROM: S82 TSD EMMC, 16GB, priority (8GB)

Expand memory: 1 x T-flash, supports maximum 32GB

Antenna: for Wi-Fi

Video formats: supports multiple video decoding S82 4K x 2K H.264,1,080P

Picture format: JPEG/BMP/GIF/PNG/TIF

Ethernet: 10/100M LAN

Wi-Fi: S82 supports 802.11a/b/g/n/ac AP6335/AP6210, priority PCBA 6210/6330/6335 co-lay

Bluetooth: BT 4.0, 6210/6330/6335

Sensor/motor IR: sensor 1 x IR

Indicator power LED: 1 x white LED

Button and ports

1 x power button (physical button), control power on and off, definition as bellow

Press for 1s, power on

Press for 1s when OS on to start standby mode, press for 1s again to awake OS

Press for 8 seconds to force to power off

1 x update button (via one pin hole)

USB2.0

2 x standard USB, 4-pin header reserved (built-in USB CAM port)

1 x micro USB with OTG

DC-in 1 x DC in Jack

HDMI

S82 1 x standard A HDMI 1.4b out, 4K x 2K

SPDIF 1 x S/SPDIF out (2, 5.1-channel)

RJ45 1 x RJ45

1 x TF card slot

1 x AV port

Power management

Adapter: 5V 3A

Accessories:

HDMI cable by request
USB data cable by request
Manual by request
USB cable by request
Software: OS Google's Android 4.4, supports OTA function
Language: multiple languages
Keyboard: qwerty keyboard
Pre-install software: angry birds by request

Features:

Miracast/DLNA supported
UI supports original ecology and Netxeon custom UI case
Graphic slot between top cover and bottom cover
Texturing on bottom cover and side A of top cover, and polishing on the side of top cover
Working environment : 5-35°C, 30-90% RH humidity
Storage environment: -20-60°C, 10-90% RH humidity

DDR3 2GB (256 x 16 x 4), priority

HDMI cable by request

USB data cable by request

Manual by request

USB cable by request

Software: OS Google's Android 4.4, supports OTA function

Language: multiple languages

Keyboard: qwerty keyboard

Pre-install software: angry birds by request

Miracast/DLNA supported

UI supports original ecology and Netxeon custom UI case

Graphic slot between top cover and bottom cover
