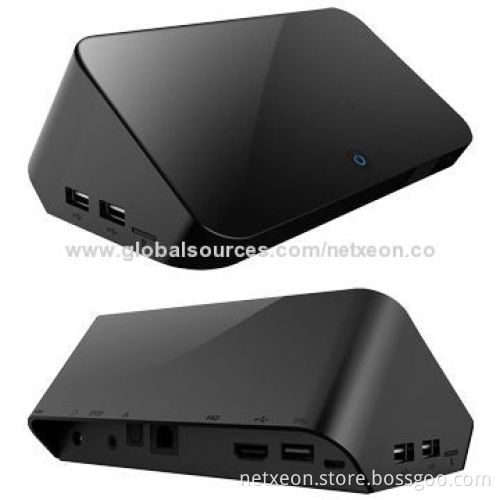

2014 New Arrive H86 Best HDMI Quad-core Android 4.2 IPTV Set Top Boxes, Sized 1406559.5mm

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Specifications:

CPU: RK3188 Quad-core 1.6GHz (cortex-A9)
GPU: Quad-core Mali-400 GPU at 533MHz
RAM: DDR3 2GB
ROM: on board NAND flash 8/16GB
Expand memory: micro SD card (maximum support 32GB)
Mic: built in HQ
Antenna: Wi-Fi built-in antenna
Video formats: MPEG-1/MPEG-2/MPEG-4/H.263/H.264/AVS/VC-1/RV8/RV9/RV10/VP6/VP8/Sorenson Spark/MVC 1,080 pixels at 60fps (1,920 x 1,080 pixels)
Audio formats: support: MP3/WMA/APE/FLAC/AAC/OGG/AC3/WAV
Picture formats: support maximum 8,000 x 8,000 JPEG/BMP/GIF/PNG
Ethernet: 10/100M LAN
Wi-Fi: IEEE 802.11a/b/g/n, Wi-Fi compliant
2.400-2.497GHz (2.4GHz ISM band)
4.900-5.845GHz (5.0GHz ISM Band)
Bluetooth: BT 4.0
3G: support for external 3G dongle
IR sensor: 1 x IR
Power LED: 1 x blue power LED with breathe
Button: 1 x power button
1 x update button(via one pin hole)
USB2.0: 3 x standard USB
1 x micro USB with OTG
DC-in: 1 x DC in jack
HDMI: 1 x HDMI A type
SPDIF: 1 x S/SPDIF (2CH, 5.1CH)
RJ45: 1 x RJ45
SD card slot: 1 x TF card slot
Audio jack: 1 x 3-pole audio jack (black)
RS232: reserved, 2 x RS232, put on the edges
Adapter: 5V, 2A
OS: Google Android 4.2, support OTA function
Language: multi-language
Keyboard: QWERTY keyboard
Work environment: 5-35°C, 30-90% RH humidity
Storage environment: -20-60°C, 10-90% RH humidity
Dimensions: 140*65*59.5mm
