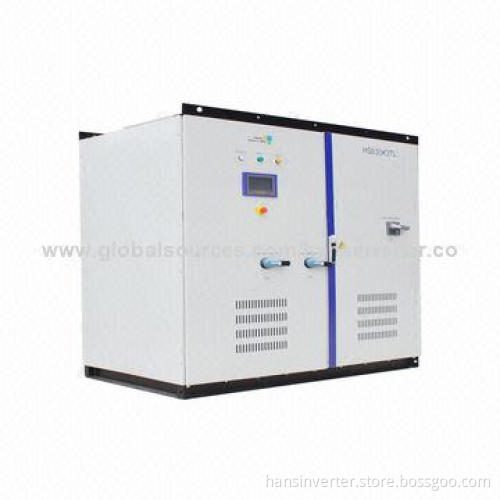

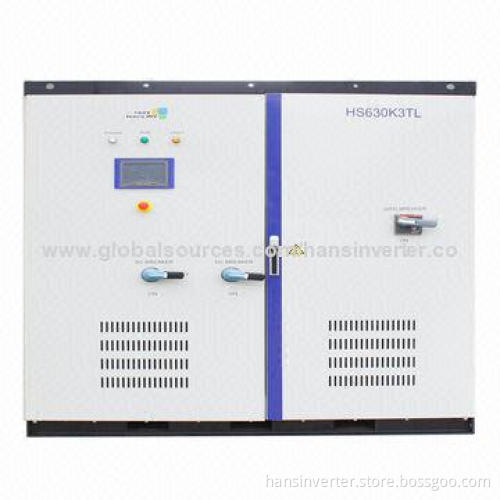

630kW PV On Grid Inverter for Solar Plant, High Efficiency 98.8%, without Transformer IEC 62109/CQC

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, or IRLC

Product Description

Wide range DC input voltage range: 450 to 1,000V DC

MPPT voltage range: 500~850V DC

Physical dimension: 1,735*1,980*1,080mm

Weight only: 1,400kg

Efficiency： 98.8%

Transformer: NO

Rated power output: 630KW

Output voltages: 268~347V ACC (adjustable）

Grid frequency range: 49.5Hz~50.2Hz

THD <2%

Power factor range: -99%~+99%

Output voltage DC component: <0.5%

Grid structure: TT/TN-S/TN-C

AC output terminal: 4*M10 (copper Bar)

IP level: IP21 (indoor)

Operating temp. range: -40°~ 80°C

Cooling: smart fan

Max altitude: 6,000m

MPPT efficiency > 99.9%

Visualized LCD display in Chinese/English/Russia/Spanish

A/B/C three phase automatically chosen disorderly

Perfect protection

LVRT (Low Voltage Ride Through）

Remote monitoring (RS 485/Ethernet/GPRS optional)

Remote continuously adjustable power factor (-100~100%)

Over temperature linear derating function

Supports multi-parallel connection
