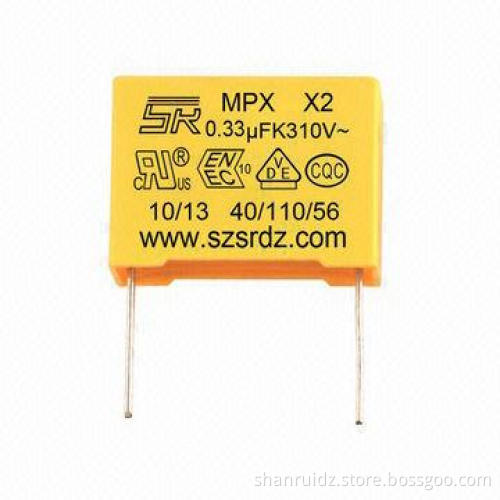

MPX Metallized Polypropylene Film Capacitor, 0.33uf, 310V AC, Withstanding Over-voltage Stressing

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T,L/C

Product Description

Features:

Applications:

As an across-the-line type noise suppression capacitor andsuitable for AC application
Grid power supply of electronic instruments and electronicequipment, switch, contacts produces a spark discharge sites
Electric tools, capacitive power supply, lighting, hair dryers,water heaters and other household electrical appliances

Specifications:

Reference standards: GB14472-2005, IEC60384-1, EN132400,EN60384-14, IEC60384-14
Rated voltage (UR): 310V AC
Maximum continuous AC voltage: 330V AC
Maximum continuous DC voltage: 800V DC
Operation temperature range: -40 - +110°C
Capacitance range: 0.0022 10uF (ENEC/VDE)
Capacitance tolerance range: K (±10%), M(±20%)
Dielectric: polypropylene film
Dissipation factor tan: d0.15% (CR d1µF) d0.3% (CR>1µF), (25 ±5°C, 10kHz)
Insulation Resistance (Between Terminals):
100V DC, 1 minute (20 ±5°C) Cd0.33µFe30,000M©, C>0.33µF e10,000M©
Withstand voltage: between terminals CRd1.0µF 3,000V DC(1 second), CR>1.0µF 4.3URV DC (1 second)
Between terminals to case: 2,500V AC (60 seconds)
Life test conditions: 100 ±2°C, 1.25UR, 1,000hours
Capacitance drift: d±3% of the initial value
Dissipation factor: d0.06% of increased value
