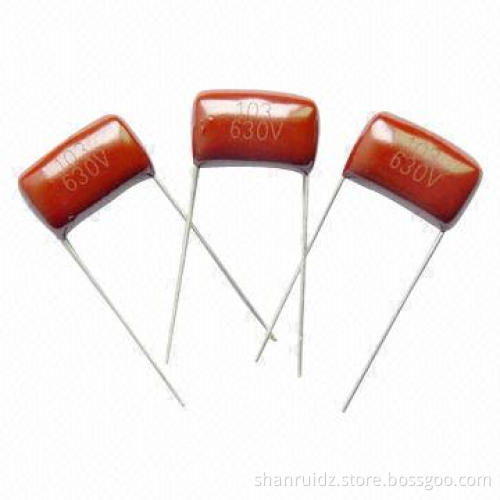

Film Foil Capacitors with Minimum Size and Very Low Loss at High Frequency

Film Foil Capacitors with Minimum Size and Very Low Loss at High Frequency

Get Latest Price

Payment Type:: T/T

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T

Product Description

Specification:

Material: polypropylene film
Electrode: aluminum foil
Climate condition: -40 to 85 degrees Celsius
Rated voltage: 250, 400, 630 and 1,000V
Testing voltage: 2.0UR (5S)
Dissipation factor: d0.0008, 10kHz, 20 degrees Celsius
Capacitance tolerance: ±5% (J), ±10% (K) and±20% (M)

CBB13 type are non-inductively wound with polypropylene film asdielectric and aluminum foil as the electrode with copper-cladsteel leads and epoxy resin coating

Features:

Low equivalent series resistance
Low dissipation factor high insulation resistance
High stability of capacitance and DF versus temperature andfrequency
Non-inductive construction and self-healing property

Typical applications:

Used in large current, coupling and compensation circuit
Remote communication, data processing, industrial instruments,automatic control system of management

Material: polypropylene film

Electrode: aluminum foil

Climate condition: -40 to 85 degrees Celsius

Rated voltage: 250, 400, 630 and 1,000V

Testing voltage: 2.0UR (5S)

Dissipation factor: d0.0008, 10kHz, 20 degrees Celsius

Capacitance tolerance: ±5% (J), ±10% (K) and±20% (M)

Low equivalent series resistance

Low dissipation factor high insulation resistance

High stability of capacitance and DF versus temperature andfrequency

Non-inductive construction and self-healing property

Used in large current, coupling and compensation circuit
