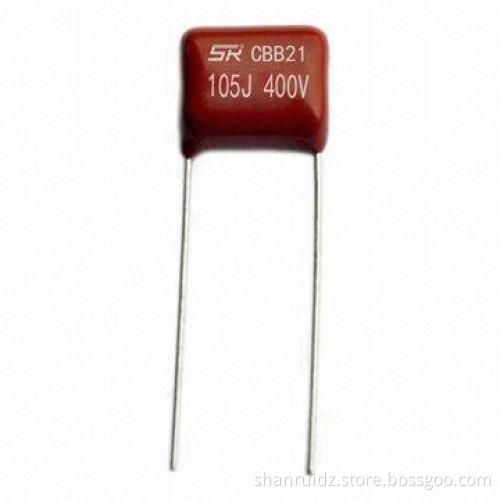

Metallized Polypropylene Film Capacitor with Good Self-healing Effect

Metallized Polypropylene Film Capacitor with Good Self-healing Effect

Get Latest Price

Payment Type:: T/T, L/C

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, L/C

Product Description

Specifications:

Climate conditions: -40 to -85°C/110°C
Rated voltage: 250, 400, 630, 1,000V DC
Capacitance range: 0.0010 to 8.2¼F
Capacitance tolerance: ±5% (J) ±10% (K)
Voltage-proof: 1.6UR (5S)
Temperature: 40 ±2°C
Humidity: 93% RH
Lasting time: 21 days
There is no visible damage with the clearly mark
Capacitance: ”C/Cd5%
Dissipation factor (1kHz): increasing d0.002
IR insulation resistance: e50% of rated
+85°C/110°C, 1,000 hours
Applying voltage: 1.25 x rate voltage

Construction:

Non-inductively wound with metallized polypropylene film as thedielectric/electrode with copper-clad steel leads and epoxy resincoating

Structures:

Material: polypropylene film
Electrode: metallized vacuum evaporated layer (with complexingjumbo-size zinc and aluminum)
Case: PBT passive flammability plastic box
Encapsulation: passive flammability epoxy resin
Pin: CP leads

Features:

High-insulation resistance
Long lifespan due to self-healing effect
High-stability of capacitance and DF versus temperature andfrequency
Low-loss at high-frequency, high DV/DT ability and suitable forhigh-current
Small inherent temperature rise
Have well voltage-proof features under the high-frequency ACcurrent

Applications:

In AC brownout circuits
Widely used in high-frequency, DC, AC and pulse circuits
Suitable for the situation where applies high-frequency andhigh-current pulse
Large-screen displays and TVs correct circuit design, LEDlights
Electronic devices, differential motors, electric tools,lighting, air conditioners, refrigerators, washing machines andhousehold appliances and power systems

Climate conditions: -40 to -85°C/110°C

Rated voltage: 250, 400, 630, 1,000V DC

Capacitance range: 0.0010 to 8.2¼F

Capacitance tolerance: ±5% (J) ±10% (K)

Voltage-proof: 1.6UR (5S)

Temperature: 40 ±2°C

Humidity: 93% RH

Lasting time: 21 days

There is no visible damage with the clearly mark

Capacitance: ”C/Cd5%

Dissipation factor (1kHz): increasing d0.002

IR insulation resistance: e50% of rated

+85°C/110°C, 1,000 hours

Applying voltage: 1.25 x rate voltage

Non-inductively wound with metallized polypropylene film as thedielectric/electrode with copper-clad steel leads and epoxy resincoating

Material: polypropylene film

Electrode: metallized vacuum evaporated layer (with complexingjumbo-size zinc and aluminum)

Case: PBT passive flammability plastic box

Encapsulation: passive flammability epoxy resin

Pin: CP leads

High-insulation resistance

Long lifespan due to self-healing effect

High-stability of capacitance and DF versus temperature andfrequency

Low-loss at high-frequency, high DV/DT ability and suitable forhigh-current

Small inherent temperature rise

Have well voltage-proof features under the high-frequency ACcurrent

In AC brownout circuits

Widely used in high-frequency, DC, AC and pulse circuits

Suitable for the situation where applies high-frequency andhigh-current pulse

Large-screen displays and TVs correct circuit design, LEDlights

Electronic devices, differential motors, electric tools,lighting, air conditioners, refrigerators, washing machines andhousehold appliances and power systems
