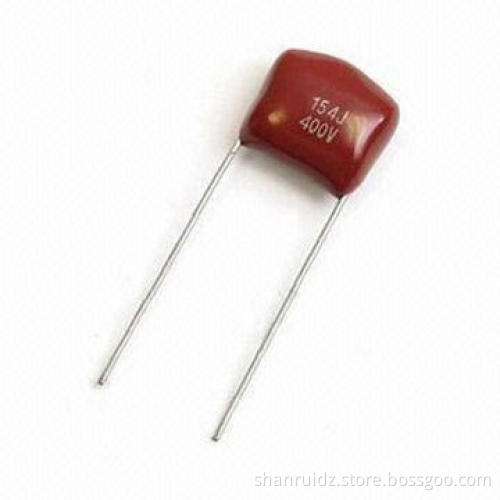

400V Metallized Polypropylene Film Capacitor, Good Self-healing Effect/40°C ±2 Temperature

400V Metallized Polypropylene Film Capacitor, Good Self-healing Effect/40°C ±2 Temperature

Get Latest Price

Payment Type:: T/T, L/C

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, L/C

Product Description

Specifications:

Climate conditions: -40 to 85°C/110°C
Rated voltage: 250, 400, 630, 1,000V DC
Capacitance range: 0.0010 to 8.2¼F
Capacitance tolerance: ±5% (J) ±10% (K)
Voltage proof: 1.6UR (5 seconds)
Humidity: 93% RH
Lasting time: 21 days
There is no visible damage with the clearly mark
Capacitance: ”C/Cd5%
Dissipation factor (1kHz): increasing d0.002
IR insulation resistance: e50% of rated
Applying voltage: 1.25 x rate voltage
Capacitance: ”C/Cd5%
Insulation resistance: e50% of rated

Structures:

Material: polypropylene film
Electrode: metallized vacuum evaporated layer (with complexingjumbo-size zinc and aluminum)
Case: PBT passive flammability plastic box
Encapsulation: passive flammability epoxy resin
Pin: CP leads

Features:

High-insulation resistance, long life due to self-healingeffect
High-stability of capacitance and DF versus temperature andfrequency
Low-loss at high-frequency, high DV/DT ability and suitable forhigh-current
Small inherent temperature rise
Have well voltage proof features under the high-frequency ACcurrent

Typical applications:

In AC brownout circuits
Widely used in high-frequency, DC, AC and pulse circuits
Suitable for the situation where applies high frequency andhigh current pulse
Large-screen displays and TV S correct circuit design, LEDlights
Electronic devices, differential motor, electric tools,lighting, air conditioner, refrigerator, washing machine andhousehold appliances and power system

Climate conditions: -40 to 85°C/110°C

Rated voltage: 250, 400, 630, 1,000V DC

Capacitance range: 0.0010 to 8.2¼F

Capacitance tolerance: ±5% (J) ±10% (K)

Voltage proof: 1.6UR (5 seconds)

Humidity: 93% RH

Lasting time: 21 days

There is no visible damage with the clearly mark

Capacitance: ”C/Cd5%

Dissipation factor (1kHz): increasing d0.002

IR insulation resistance: e50% of rated

Applying voltage: 1.25 x rate voltage

Capacitance: ”C/Cd5%

Insulation resistance: e50% of rated

Material: polypropylene film

Electrode: metallized vacuum evaporated layer (with complexingjumbo-size zinc and aluminum)

Case: PBT passive flammability plastic box

Encapsulation: passive flammability epoxy resin

Pin: CP leads

High-insulation resistance, long life due to self-healingeffect

High-stability of capacitance and DF versus temperature andfrequency

Low-loss at high-frequency, high DV/DT ability and suitable forhigh-current

Small inherent temperature rise

Have well voltage proof features under the high-frequency ACcurrent

In AC brownout circuits

Widely used in high-frequency, DC, AC and pulse circuits

Suitable for the situation where applies high frequency andhigh current pulse

Large-screen displays and TV S correct circuit design, LEDlights

Electronic devices, differential motor, electric tools,lighting, air conditioner, refrigerator, washing machine andhousehold appliances and power system
