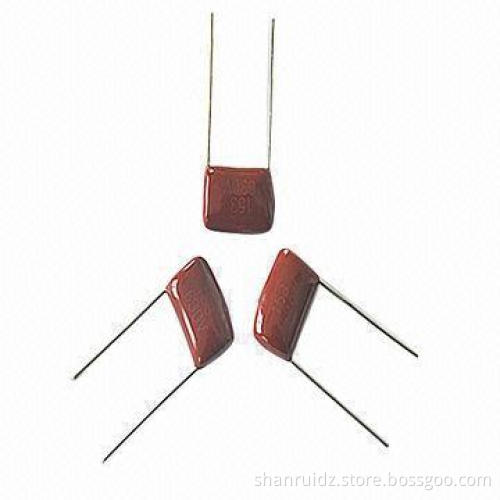

Film Foil Capacitors, Enveloped with Fire-proof Epoxy Resin, 250, 400, 630 and 1,000V Rated Voltage

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, L/C, Western Union

Product Description

Structure:

Applications: high-frequency, DC, and impulse high-currentconditions such as lamps monitor and power supplier and more

Features: very low-loss at high-frequency, could bear thehigh-current impactive

Specifications:

Material: polypropylene film

Electrode: aluminum foil

Enveloped with fire-proof epoxy resin

Pin: CP leads or copper wire

Reference standard: GB10188 (IEC384-13)

Voltage: 250, 400, 630 and 1,000V

Capacitance range: 0.001 to 0.47uf

Capacitance tolerance range: J (±5%), K(±10%)

Testing voltage: 2.0UR (5S)

Dissipation factor: d0.0008, 10kHz, 20
