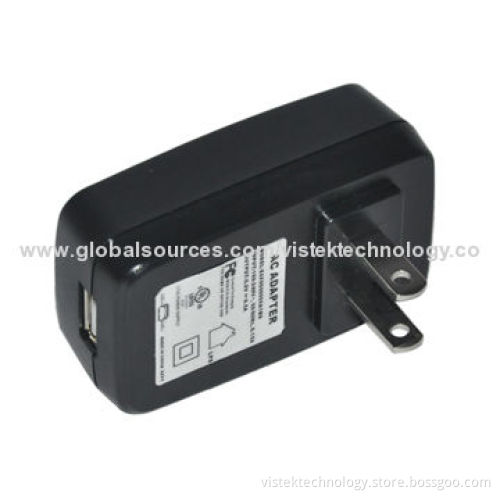

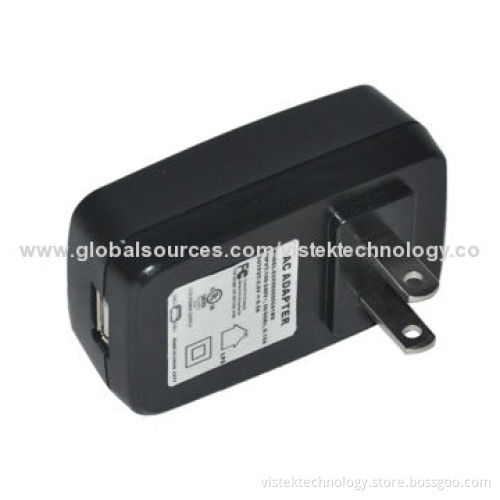

7.5W US USB AC/DC Switching Adapter for Vistek with 90-264V AC Input Voltage Range
  • 7.5W US USB AC/DC Switching Adapter for Vistek with 90-264V AC Input Voltage Range
  • 7.5W US USB AC/DC Switching Adapter for Vistek with 90-264V AC Input Voltage Range
7.5W US USB AC/DC Switching Adapter for Vistek with 90-264V AC Input Voltage Range
7.5W US USB AC/DC Switching Adapter for Vistek with 90-264V AC Input Voltage Range

7.5W US USB AC/DC Switching Adapter for Vistek with 90-264V AC Input Voltage Range

Get Latest Price
Payment Type:
Telegraphic Transfer in Advance (Advance TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer in Advance (Advance TT, T/T)
Product Description
Product Description
  • Specifications:
    • Input voltage range: 90-264V AC
    • Input frequency range: 47-63Hz
    • Input current: 0.18A (maximum)
    • Inrush current: 60A at least 230V AC, cold star, 25
    • Efficiency level: V
    • Ripple and noise: 100-180mV
    • Altitude: 2,000m
  • Safety parameters:
    • Operating temperature: 0-40
    • Abnormal sound: 40dB (maximum), no sound room
    • Leakage current: <0.25mA
    • Insulation resistance: 50M Ohms
    • Dielectric withstanding strength: 3,000V AC, 60 seconds
  • Reliability:
    • MTBF: 50,000 hours
    • Electro analysis capacitor: >12,000 hours
    • Thermal derating: <80%
    • Drop: 1,000mm to concrete
  • Features:
    • Light, extra, human mechanics design compact
    • High-efficiency green power, full complies with CEC
    • Level V, MEPS V EUP2010
    • Extra safe protection function design with respective safety approvals
    • Suitable for an extremely wide range of application
    • Such as: mobile phones/POS/set-top-box/ADSL/hard disk drive/AV product/household application and more
  • Input voltage range: 90-264V AC
  • Input frequency range: 47-63Hz
  • Input current: 0.18A (maximum)
  • Inrush current: 60A at least 230V AC, cold star, 25
  • Efficiency level: V
  • Ripple and noise: 100-180mV
  • Altitude: 2,000m
  • Operating temperature: 0-40
  • Abnormal sound: 40dB (maximum), no sound room
  • Leakage current: <0.25mA
  • Insulation resistance: 50M Ohms
  • Dielectric withstanding strength: 3,000V AC, 60 seconds
  • MTBF: 50,000 hours
  • Electro analysis capacitor: >12,000 hours
  • Thermal derating: <80%
  • Drop: 1,000mm to concrete
  • Light, extra, human mechanics design compact
  • High-efficiency green power, full complies with CEC
  • Level V, MEPS V EUP2010
  • Extra safe protection function design with respective safety approvals
  • Suitable for an extremely wide range of application
  • Such as: mobile phones/POS/set-top-box/ADSL/hard disk drive/AV product/household application and more
