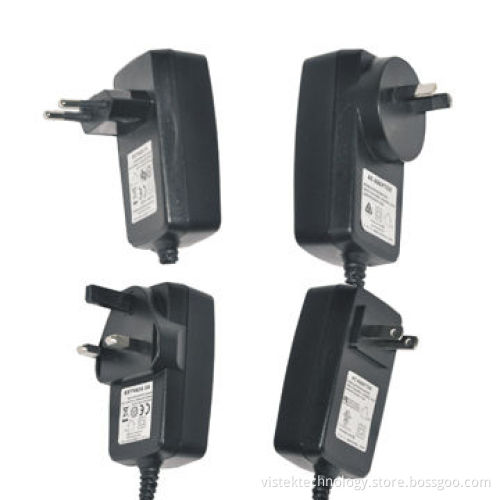

5V 1.5A AC DC Adapter with GS, CE, RoSH Certification, High-Performance, One Year Warranty

Get Latest Price

Payment Type:: T/T, Western Union, PayPal or L/C

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, Western Union, PayPal or L/C

Product Description

Input voltage range: 90-264V AC

Input frequency range: 47-63HZ

Input current: 0.18A max

Inrush current: 60A at 230V AC, cold star, 25℃

Effciency level: V

Ripple and noise range: 100-180mV

Altitude: 2,000m

Safety parameter:

Operation temps: 0-40℃
Abnormal sound: 40db max., no sound room
Leakage current:< 0.25mA
Insulation resistance: 50M ohm min
Dielectric withstanding strength: 3000V AC, 60Sec

Reliability

MTBF: 50,000 hours
Electroanalysis capacitor life:>12,000 hours
Thermal derating:<80%
Drop: 1,000mm to concrete

Key features:

Light, extra, human mechanics design compact
High efficiency green power, full complies with CEC level V, MEPS V EUP2010
Extra safe protection function design with respective safety approvals
Suitable for an extremely wide range of applications such as: Mobile phone/Pos/Set-top-box/ADSL/Hard disk drive/AV produt/household appliance and more

Operation temps: 0-40℃

Abnormal sound: 40db max., no sound room

Leakage current:< 0.25mA

Insulation resistance: 50M ohm min

Dielectric withstanding strength: 3000V AC, 60Sec

MTBF: 50,000 hours

Electroanalysis capacitor life:>12,000 hours

Thermal derating:<80%

Drop: 1,000mm to concrete

Light, extra, human mechanics design compact

High efficiency green power, full complies with CEC level V, MEPS V EUP2010

Extra safe protection function design with respective safety approvals

Suitable for an extremely wide range of applications such as: Mobile phone/Pos/Set-top-box/ADSL/Hard disk drive/AV produt/household appliance and more
