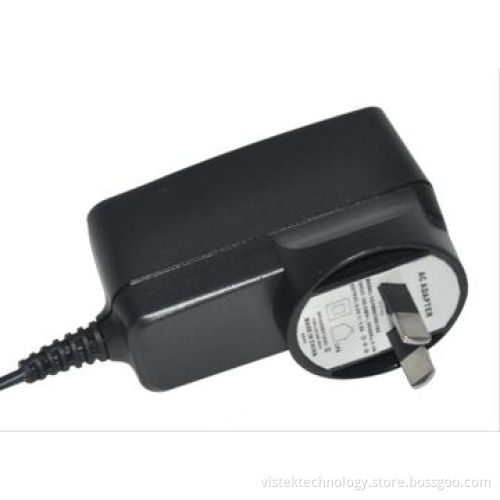

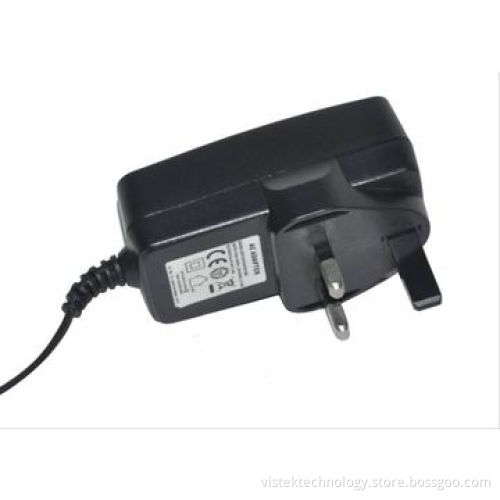

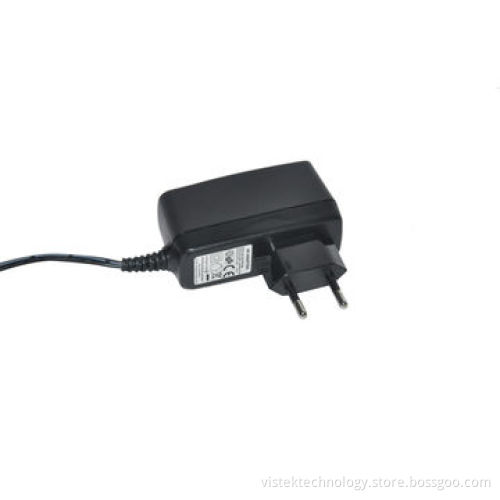

5V 1A 5W power adapter, AC DC power adapter

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, Western Union, PayPal or L/C

Product Description

Specifications:

Safety parameters:

Reliability:

Key features:

Input voltage range: 90V-264V AC

Input frequency range: 47-63Hz

Input current: 0.15A max

Inrush current: 60A at least 230V AC, cold star, 25℃

Efficiency level: V

Ripple and noise: 80-160mV

Altitude: 2,000m

Operation Temp.: 0-45℃

Abnormal sound: 40db max, no sound room

Leakage current: <0.25mA

Insulation resistance: 50M ohm min

Dielectric withstanding strength: 3,000V AC, 60Sec

MTBF: 50,000 hours

Electro analysis capacitor: >12,000 hours

Thermal derating: <80%

Drop: 1,000mm to concrete

Light, extra, human mechanics design compact

High efficiency green power, full complies with CEC

Level V, MEPS V EUP2010

Extra safe protection function design with respective safety approvals

Suitable for an extremely wide range of application

Such as: Mobile phone/Pos/Set-top-box/ADSL/Hard disk drive/AV product/

Household application and more
