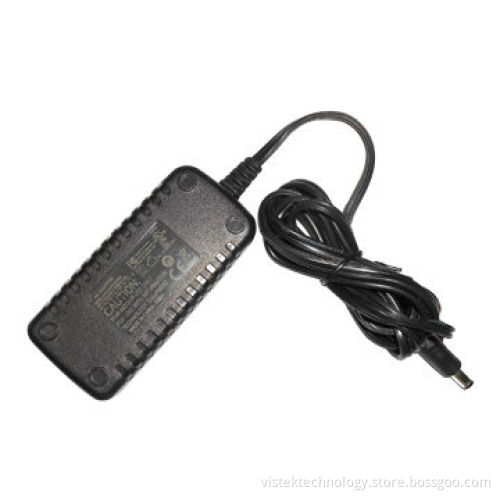

Best Selling Vistek AC/DC Adapter, Used in IT, Home, Commercial Application, Level V, Low Ripple
  • Best Selling Vistek AC/DC Adapter, Used in IT, Home, Commercial Application, Level V, Low Ripple
  • Best Selling Vistek AC/DC Adapter, Used in IT, Home, Commercial Application, Level V, Low Ripple
Best Selling Vistek AC/DC Adapter, Used in IT, Home, Commercial Application, Level V, Low Ripple
Best Selling Vistek AC/DC Adapter, Used in IT, Home, Commercial Application, Level V, Low Ripple

Best Selling Vistek AC/DC Adapter, Used in IT, Home, Commercial Application, Level V, Low Ripple

Get Latest Price
Payment Type:
Telegraphic Transfer (TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer (TT,T/T)
Product Description
Product Description
  • I/P: 100 to 240V AC, 50/60Hz, 0.6A
  • O/P: 20V DC, 1A
  • Input connector: IEC C8
  • DC jack size: 5.5 x 2.5 x 10mm with EIAJ design, straight DCdesign
  • DC cable length: 1.83m
  • Certificates: CE/UL/FCC/cUL/RoHS
  • Can be used in IT, home, commercial application
  • Safety parameters:
  • Operating temperature: 0 to 40°C
  • Abnormal sound: 40db max, no sound room
  • Leakage current: <0.25mA
  • Insulation resistance: 50M Ω min
  • Dielectric withstanding Strength: 3,000Vac, 60sec
  • Reliability:
    • MTBF: 50,000 hours
    • Electroanalysis capacitor: e12,000 hours
    • Thermal derating: <80%
    • Drop: 1,000mm to concrete
    • Suitable for an extremely wide range of application
    • Such as: mobile phone/POS/set-top-box/ADSL/Hard disk drive/AVproduct/household application and more
  • Key features:
    • Light, extra, human mechanics design compact
    • High efficiency green power, full complies with CEC
    • Level V, MEPS V EUP2010
    • Ripple and noise d150mV
    • Protection: OCP OVP SCP
    • Extra safe protection function design with respective safetyapprovals
    • Suitable for an extremely wide range of application
  • MTBF: 50,000 hours
  • Electroanalysis capacitor: e12,000 hours
  • Thermal derating: <80%
  • Drop: 1,000mm to concrete
  • Suitable for an extremely wide range of application
  • Such as: mobile phone/POS/set-top-box/ADSL/Hard disk drive/AVproduct/household application and more
  • Light, extra, human mechanics design compact
  • High efficiency green power, full complies with CEC
  • Level V, MEPS V EUP2010
  • Ripple and noise d150mV
  • Protection: OCP OVP SCP
  • Extra safe protection function design with respective safetyapprovals
  • Suitable for an extremely wide range of application
