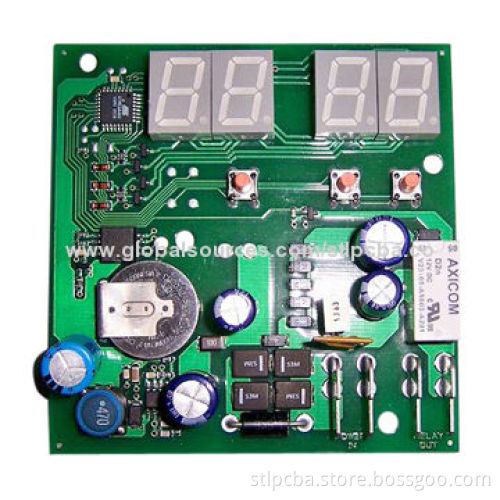

High frequency PCBs, design manufacture from China
  • High frequency PCBs, design manufacture from China
High frequency PCBs, design manufacture from China

High frequency PCBs, design manufacture from China

Get Latest Price
Payment Type:
T/T in Advance
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T in Advance
Product Description
Product Description
  • Quick details:
    • Place of origin: Guangdong China (mainland)
    • Base material: FR-4 glass epoxy
    • Copper thickness: 1oz
    • Board thickness: 1.6mm
    • Minimum hole size: 0.15mm
    • Minimum line width: 0.15mm
    • Minimum line spacing: 0.15mm
    • Surface finishing: HASL lead-free
    • Solder mask colors: green
    • Silkscreen colors: white
    • OEM orders are welcome
  • Packing detail:
    • Inner packing:
    • Vacuum packing: plastic bag
    • Outer packing: standard carton packing
  • Delivery detail: 6-10 days
  • PCB capabilities:
    • Materials: FR4, CEM-3, CM-1, FR-1, Teflon, aluminum, rogers and high Tg
    • Layers: 1-12
    • Maximum panel size: 540 x 520mm
    • Thickness finished: 0.25-5.0mm
    • Copper thicknesses: 0.5-5.0oz
    • Minimum line width/spacing: 0.10/0.10mm
    • Minimum hole/PAD: 0.1/0.4mm
    • Surface finished: lead-free HASL, immersion gold/tin/silver, OSP, gold finger plating, selective immersion gold, gold plating
    • Controlled impedance: ±10% (minimum ±7Ω)
    • Outline tolerance CNC routing: ±0.1mm
    • Punching: ±0.15mm
    • Layer to layer excursion: ±0.1mm
    • Min legend: 0.15mm
    • Aspect ratio: 10:01
    • Anti-flaming level: 94V-0
    • Electric strength: >1.3kV/mm
    • Peel strength: 1.4N/mm
  • Place of origin: Guangdong China (mainland)
  • Base material: FR-4 glass epoxy
  • Copper thickness: 1oz
  • Board thickness: 1.6mm
  • Minimum hole size: 0.15mm
  • Minimum line width: 0.15mm
  • Minimum line spacing: 0.15mm
  • Surface finishing: HASL lead-free
  • Solder mask colors: green
  • Silkscreen colors: white
  • OEM orders are welcome
  • Inner packing:
  • Vacuum packing: plastic bag
  • Outer packing: standard carton packing
  • Materials: FR4, CEM-3, CM-1, FR-1, Teflon, aluminum, rogers and high Tg
  • Layers: 1-12
  • Maximum panel size: 540 x 520mm
  • Thickness finished: 0.25-5.0mm
  • Copper thicknesses: 0.5-5.0oz
  • Minimum line width/spacing: 0.10/0.10mm
  • Minimum hole/PAD: 0.1/0.4mm
  • Surface finished: lead-free HASL, immersion gold/tin/silver, OSP, gold finger plating, selective immersion gold, gold plating
  • Controlled impedance: ±10% (minimum ±7Ω)
  • Outline tolerance CNC routing: ±0.1mm
  • Punching: ±0.15mm
  • Layer to layer excursion: ±0.1mm
  • Min legend: 0.15mm
  • Aspect ratio: 10:01
  • Anti-flaming level: 94V-0
  • Electric strength: >1.3kV/mm
  • Peel strength: 1.4N/mm
