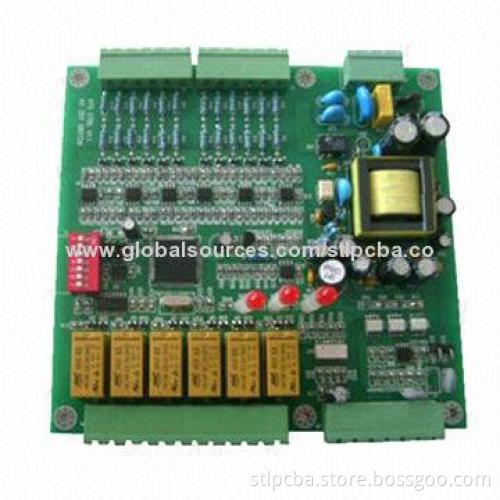

PCB Manufacturing, Custom PCB, Fr4, Surface Finishing with Immersion Gold
  • PCB Manufacturing, Custom PCB, Fr4, Surface Finishing with Immersion Gold
PCB Manufacturing, Custom PCB, Fr4, Surface Finishing with Immersion Gold

PCB Manufacturing, Custom PCB, Fr4, Surface Finishing with Immersion Gold

Get Latest Price
Payment Type:
T/T in Advance
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T in Advance
Product Description
Product Description
  • Quick details;
    • Place of Origin: Guangdong China (Mainland)
    • Brand name: STL
    • Base naterial: FR4
    • Copper thickness: 1OZ
    • Board thickness: 1.6mm
    • Solder mask: green
    • Silkscreen: white
    • Min. hole size: 0.1mm
    • Min. line width: 4mil
    • Min. line spacing: 4mil
    • Surface finishing: immersion gold
  • Packaging & delivery:
    • Packaging detail: do as customer requested
    • Delivery detail: 15-20 days
  • PCB Capabilities:
    • Materials: FR-4, CEM-3, CM-1, FR-1, teflon, aluminum, rogers, high Tg
    • Layer: 1-12 layers
    • Maximum panel size: 540 x 520mm
    • Thickness finished: 0.25-5.0 mm
    • Copper thickness: 0.5-5.0oz
    • Minimum line width/spacing: 0.10mm/0.10mm
    • Minimum hole/PAD 0.1mm/PAD: 0.4mm
    • Surface finished: lead-free HASL, immersion gold/tin/silver, OSP, gold finger plating, selective immersion gold, gold plating
    • Controlled impedance: ±10% (min±7Ω)
    • Outline tolerance CNC routing: ±0.1mm
    • Punching: ±0.15mm
    • Layer to layer excursion: ±0.1mm
    • Min legend: 0.15mm
    • Aspect ratio: 10:01
    • Anti-flaming level: 94V-0
    • Electric strength: >1.3kV/mm
    • Peel strength: 1.4N/mm

  • Place of Origin: Guangdong China (Mainland)
  • Brand name: STL
  • Base naterial: FR4
  • Copper thickness: 1OZ
  • Board thickness: 1.6mm
  • Solder mask: green
  • Silkscreen: white
  • Min. hole size: 0.1mm
  • Min. line width: 4mil
  • Min. line spacing: 4mil
  • Surface finishing: immersion gold
  • Packaging detail: do as customer requested
  • Delivery detail: 15-20 days
  • Materials: FR-4, CEM-3, CM-1, FR-1, teflon, aluminum, rogers, high Tg
  • Layer: 1-12 layers
  • Maximum panel size: 540 x 520mm
  • Thickness finished: 0.25-5.0 mm
  • Copper thickness: 0.5-5.0oz
  • Minimum line width/spacing: 0.10mm/0.10mm
  • Minimum hole/PAD 0.1mm/PAD: 0.4mm
  • Surface finished: lead-free HASL, immersion gold/tin/silver, OSP, gold finger plating, selective immersion gold, gold plating
  • Controlled impedance: ±10% (min±7Ω)
  • Outline tolerance CNC routing: ±0.1mm
  • Punching: ±0.15mm
  • Layer to layer excursion: ±0.1mm
  • Min legend: 0.15mm
  • Aspect ratio: 10:01
  • Anti-flaming level: 94V-0
  • Electric strength: >1.3kV/mm
  • Peel strength: 1.4N/mm
