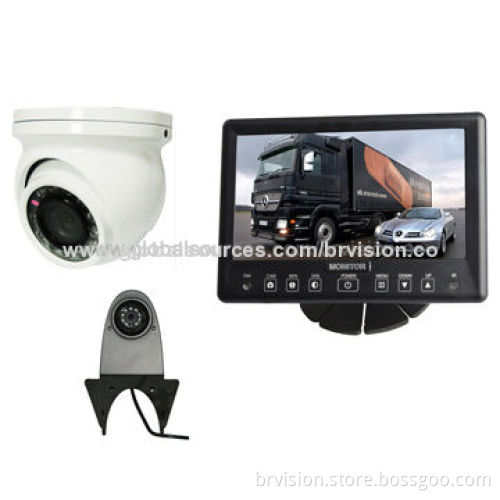

Car Reverse System, IP67 Waterproof Monitor, Shark and CCD Dome Camera, for Security

Car Reverse System, IP67 Waterproof Monitor, Shark and CCD Dome Camera, for Security

Get Latest Price

Payment Type:: Telegraphic Transfer in Advance (Advance TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Monitor specifications:

7.0-inch TFT LCD monitor: 16:9
PAL and NTSC auto-switching
Wide viewing angle (CRI: >10Ra):
- Up/ down: 15/40
- Left/right: 65/65
Brightness: 450cd/m²
Resolutions: 800 x RGB x 480P
Mirror/normal switch
Menu is workable even if under mirror image condition
Day/night sensor for automatic adjustment
Built-in speaker
Color system: PAL/NTSC (auto)
IP rate: IP67
With soon response (at 25°C): 20 minutes
Power requirement: 12/24V DC
Power consumption: ≤5W
Operating temperature: -20 to 70°C
Storage temperature: -30 to 80°C

Dome camera specifications:

Image sensor: 1/3-inch colored CCD
Resolution: 420TVL
Waterproof rate: IP65
Electronic shutter speed: 1/60-1/5,000 seconds
Lens: 2.8/2.1mm
Wide angle: 120°
Power: 12V DC (±10%)
Night-vision function

Camera specifications:

Type high-resolution backup camera
Image sensor: 1/3-inch CCD
TV system NTSC/PAL (optional)
Effective pixels:
- NTSC: 510 x 492 pixels
- PAL: 500 x 582 pixels
Horizontal resolution: 420TVL
Lens angle: 120°:
Minimum illumination: 0 Lux (LED on)
IR LEDs: 10 pieces for night-vision distance of 45ft
Audio function
Operating temperature: -20 to 70°C, 95% RH (maximum)
Lens: f = 2.5/1.7mm
Power supply: 12V DC
Dimensions (L x W x H): 70 x 50 x 40mm
Net weight: 350g
Waterproof rate: IP68
Shell material: aluminum alloy

7.0-inch TFT LCD monitor: 16:9

PAL and NTSC auto-switching

Wide viewing angle (CRI: >10Ra):

Up/ down: 15/40
Left/right: 65/65

Brightness: 450cd/m²

Resolutions: 800 x RGB x 480P

Mirror/normal switch

Menu is workable even if under mirror image condition

Day/night sensor for automatic adjustment

Built-in speaker

Color system: PAL/NTSC (auto)

IP rate: IP67

With soon response (at 25°C): 20 minutes

Power requirement: 12/24V DC

Power consumption: ≤5W

Operating temperature: -20 to 70°C

Storage temperature: -30 to 80°C

Up/ down: 15/40

Left/right: 65/65

Image sensor: 1/3-inch colored CCD

Resolution: 420TVL

Waterproof rate: IP65

Electronic shutter speed: 1/60-1/5,000 seconds

Lens: 2.8/2.1mm

Wide angle: 120°

Power: 12V DC (±10%)

Night-vision function

Type high-resolution backup camera

Image sensor: 1/3-inch CCD

TV system NTSC/PAL (optional)

Effective pixels:

NTSC: 510 x 492 pixels
PAL: 500 x 582 pixels

Horizontal resolution: 420TVL

Lens angle: 120°:

Minimum illumination: 0 Lux (LED on)

IR LEDs: 10 pieces for night-vision distance of 45ft

Audio function

Operating temperature: -20 to 70°C, 95% RH (maximum)

Lens: f = 2.5/1.7mm

Power supply: 12V DC

Dimensions (L x W x H): 70 x 50 x 40mm

Net weight: 350g

Waterproof rate: IP68

Shell material: aluminum alloy

NTSC: 510 x 492 pixels

PAL: 500 x 582 pixels
