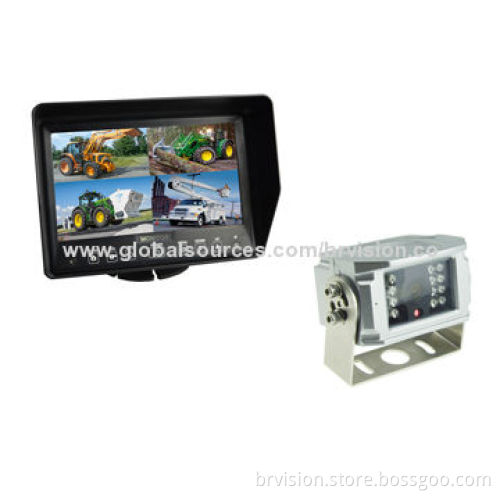

Waterproof Monitor Camera System with 7-inch LCD Monitor, Waterproof, 700TVL Camera

Waterproof Monitor Camera System with 7-inch LCD Monitor, Waterproof, 700TVL Camera

Get Latest Price

Payment Type:: Telegraphic Transfer (TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Features:

Waterproof design
Built-in quad control box function
Rearview monitor support four camera inputs
With remote controller
Single view/split view/quad view selectable
7 languages OSD display
PAL/NTSC optional, mirror/normal image optional
Automatically turn on when the reversing gear is engaged
Trigger priority: CAM 1>CAM 2>CAM 3>CAM 4
With high-low voltage protection and short circuit protection
IR rearview camera DC 12-24V for heavy duty

Monitor specifications:

7-inch TFT LCD monitor, 16:9
IP rating: IP67
Wide view angle (CR>10): (up/down/left/right): 40/40/60/60°
Resolution: 400 RGB x 234 dots
Color system: PAL/NTSC (selectable)
Power requirement: 12/24V DC
Power consumption: 5W
Operating temperatures: -20 to +70°C
Storage temperatures: -30 to +80°C
Dimensions: 183 (L) x 125 (W) x 38mm (D)

Camera specifications:

Type: high-resolution backup camera
Image sensor: 1/4-inch Sony/Sharp CCD
TV system: NTSC/PAL
Optional effective pixels:
- N: 510x492 pixels
- P: 500x582 pixels horizontal
Resolution: 420TVL
Lens angle: 120°
Minimum illumination: 0lux (LED on)
IR LED: 10pcs
Night vision distance: 45ft
Operating temperatures -20-70°C, RH 95%
Max lens: f=2.8mm
Power supply: DC 12V
Waterproof rate: IP68
Shell material: aluminum alloy

Waterproof design

Built-in quad control box function

Rearview monitor support four camera inputs

With remote controller

Single view/split view/quad view selectable

7 languages OSD display

PAL/NTSC optional, mirror/normal image optional

Automatically turn on when the reversing gear is engaged

Trigger priority: CAM 1>CAM 2>CAM 3>CAM 4

With high-low voltage protection and short circuit protection

IR rearview camera DC 12-24V for heavy duty

7-inch TFT LCD monitor, 16:9

IP rating: IP67

Wide view angle (CR>10): (up/down/left/right): 40/40/60/60°

Resolution: 400 RGB x 234 dots

Color system: PAL/NTSC (selectable)

Power requirement: 12/24V DC

Power consumption: 5W

Operating temperatures: -20 to +70°C

Storage temperatures: -30 to +80°C

Dimensions: 183 (L) x 125 (W) x 38mm (D)

Type: high-resolution backup camera

Image sensor: 1/4-inch Sony/Sharp CCD

TV system: NTSC/PAL

Optional effective pixels:

N: 510x492 pixels
P: 500x582 pixels horizontal

Resolution: 420TVL

Lens angle: 120°

Minimum illumination: 0lux (LED on)

IR LED: 10pcs

Night vision distance: 45ft

Operating temperatures -20-70°C, RH 95%

Max lens: f=2.8mm

Power supply: DC 12V

Waterproof rate: IP68

Shell material: aluminum alloy

N: 510x492 pixels

P: 500x582 pixels horizontal
