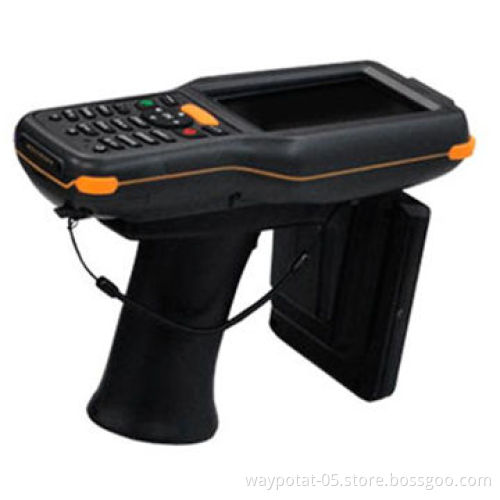

UHF RFID Reader, Supports 1D/2D Barcode, GPS, Wi-Fi, 3G

UHF RFID Reader, Supports 1D/2D Barcode, GPS, Wi-Fi, 3G

Get Latest Price

Payment Type:: T/T, Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, Western Union

Product Description

Specifications:

Operating system: Windows CE 6.0
CPU: high-speed ARM platform, clocked 800MHz
Memory: 512MB DDR2 SDRAM
Storage card: 4GB iNAND Flash, maximum 32GB microSD card
Display: Sharp 4-inch TFT LCD screen (480 * 800), resistive touchscreen
Audio: built-in 8©/0.5W speaker
Keypad: 25 buttons
Wi-Fi module: WLAN 802.11 b/g (standard)
Bluetooth module: 2.0+EDR (standard)
Wireless: 3G (WCDMA) wireless (optional)
RFID module: HF (optional), UHF, 2.4G (optional)
Barcode module: 1D module (optional), 2D module (optional)
GPS module: built-in GPS module, plus an active GPS antenna(optional)
Battery powered lithium polymer, 3400mAh, 7.4V
Fitting 9V/2A charger, USB to mini 5-pin data cable
Webcam: 2MP

RFID specifications:

2.4G module
Operating frequency: 2.4GHz-2.5GHz
Identification range: max 10m (related to tag)
UHF module
Operating frequency: 902-928MHz (standard)
Customize within: 860-960MHz
Protocol: EPC C1 G2 (ISO18000-6C)
Read range: max 7m (related to tag)
Write range: max 4m (related to tag)

Physical specifications:

Dimensions: 200*80*145mm
Weight: 715g

Environmental specifications:

Operating temperature: -10 - +50°C
Storage temperature: -20 - +70°C
Storage humidity: 5-95% non-condensing

Operating system: Windows CE 6.0

CPU: high-speed ARM platform, clocked 800MHz

Memory: 512MB DDR2 SDRAM

Storage card: 4GB iNAND Flash, maximum 32GB microSD card

Display: Sharp 4-inch TFT LCD screen (480 * 800), resistive touchscreen

Audio: built-in 8©/0.5W speaker

Keypad: 25 buttons

Wi-Fi module: WLAN 802.11 b/g (standard)

Bluetooth module: 2.0+EDR (standard)

Wireless: 3G (WCDMA) wireless (optional)

RFID module: HF (optional), UHF, 2.4G (optional)

Barcode module: 1D module (optional), 2D module (optional)

GPS module: built-in GPS module, plus an active GPS antenna(optional)

Battery powered lithium polymer, 3400mAh, 7.4V

Fitting 9V/2A charger, USB to mini 5-pin data cable

Webcam: 2MP

2.4G module

Operating frequency: 2.4GHz-2.5GHz

Identification range: max 10m (related to tag)

UHF module

Operating frequency: 902-928MHz (standard)

Customize within: 860-960MHz

Protocol: EPC C1 G2 (ISO18000-6C)

Read range: max 7m (related to tag)

Write range: max 4m (related to tag)

Dimensions: 200*80*145mm

Weight: 715g

Operating temperature: -10 - +50°C

Storage temperature: -20 - +70°C

Storage humidity: 5-95% non-condensing
