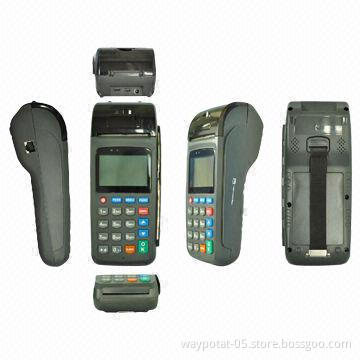

POS Terminal, 38mm Diameter, Fingerprint and EMV/PCI Marks

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T or Western Union

Product Description

Specifications:

Processor: 32-bit ultra-high-speed secure CPU, 192MHz
Memory: 8MB flash
32MB: SDRAM
Operating system: Linux
Display: mono color 128 x 64 pixels LCD with backlight 3.5-inch 320 x 240P TFT color
Connectivity: GPRS 900/1,800MHz
GPRS: Quad-band/modem/Wi-Fi/CDMA/Ethernet
Slots: SIM, 3 PSAM, micro SD, 5 PSAM
Peripheral ports: USB OTG and RS232, Ethernet
Compliance: EMV level 1 and level 2 mark, PCI PED 2x marks
Printer thermal printer: 57mm width
Print speed up to 15 lines/second
Printing paper rolls:
- Width: 57mm
- Diameter: 38mm
Keypad: built-in pin pad, 21 keys
Magnetic card reader: bidirectional track 1/2/3, complied with ISO 7812
Smart card reader: EMV level 1 and level 2
Antenna: internal
Li-polymer battery: 2,500mAh, 7.4V
Power supplies:
- Inputs: 100-240V AC, 50Hz/60Hz, 1.0A
- Output: 9.0V1 DC, 4.0A
Working environment temperatures: 0 to 40℃
Humidity: 5-93% RH (non-condense)
Storage environment temperatures: -20-70℃
Humidity: 5-95% RH (non-condense)
Dimensions (L x W x H): 180 x 90 x 72mm
Weight: 0.53kg
Contactless card reader: ISO/IEC 14443 type A/B, compliance
Mifare compliance/13.56MHz
ID authentication: fingerprint module
