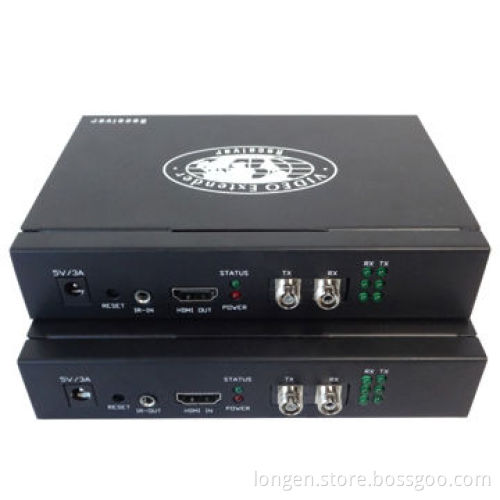

DVI Fiber Optical Transmission, Transmit Video and IR Signal to Remote Location Over Single/Duplex

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Features:

Supports 1920 x 1080p at 60Hz

Maximum extension distance 2km (MM fiber)/20km (SM fiber)

Single/duplex fiber transmission, pure hardware design and nodriver needed

Compatible with all operation systems, supportsplug-and-play

Can support DVI signal transmission

IR function for optional

Specifications:

Video I/O connector: HDMI

HDMI version: HDMI 1.1, 1.2 and 1.3

HDCP: 1.2

HDMI resolution: 1080p/1080i/720p/720i/576p/576i/480p/480i

Video color format: 24bit/deep color 30bit/deep color36bit

Audio format:DTS/HD/Dolby-tureHD/LPCM7.1/DTS/Dolby-AC3/DSD

TMDS: 0.5 to 1.5Vp-p (TTL)

DDC: 5Vp-p (TTL)

Input cable length: ≤20m AWG 26 HDMI 1.3 standard cable

Output cable length: ≤20m AWG 26 HDMI 1.3 standardcable

Optical connector: SM/MM and SC/FC type

Wave length: 850/1310/1550nm

Physical:

Sizes:
- Sender: (L) 150 x (W) 105 x (H) 30mm
- Receiver: (L) 150 x (W) 105 x (H) 30mm
Case: metal
Color: black
Net weight: 0.75kg
Voltage: 5V/3A DC
Sender power consumption: 6W
Receiver power consumption: 6W

Environment:

Sizes:

Case: metal

Color: black

Net weight: 0.75kg

Voltage: 5V/3A DC

Sender power consumption: 6W

Receiver power consumption: 6W

Sender: (L) 150 x (W) 105 x (H) 30mm

Receiver: (L) 150 x (W) 105 x (H) 30mm

Working temperature: -15 to 55°C

Storage temperature: -40 to 80°C

Humidity: 0 to 95% RH (non-condensing)
