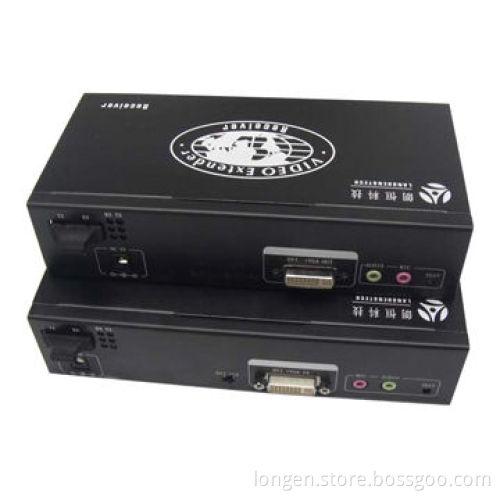

VGA/Audio Fiber Optical Transmission without PS2, Extend Maximum Up to 2/20km Over MM/SM Fiber Cable

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T Pay in Advance

Product Description

Features:

Supported resolution: 800 x 600p (at all refresh rates) and1024 x 768p (70Hz above)
Resolutions will be affected by screen size, most of screensare supported except few screen
Maximum transmission distance: 2000m (MM)/20km (SM)
Supports single-fiber optical cable transmission, pure hardwaredesign and no driver needed
Compatible with all operating system, supports plug-and-playfunction, supports VGA, PS2 and audio microphone

Specifications:

Video input/output: VGA/DVI
Sizes:
- Sender: (L) 212 x (W) 128 x (H) 48mm
- Receiver: (L) 204 x (W) 98 x (H) 47mm
Fiber cable input/output connector: SM/MM fiber and SC/FC foroption
Input optical wavelength: 850/1310/1550nm
Transmitting distance: 1 to 2km/MM and 1 to 20km/SM
Input: 110 to 220V AC, 50/60Hz
Audio connector: 3.5mm audio jack
Net weight: 1.55kg
Video signal bandwidth: 240MHz to 1.65GHz
Audio signal bandwidth: 100Hz to 20kHz
DDC input: 5Vp-p (TTL)
Power adapter: 5V DC/3A
Working temperature: -25 to +70°C
Resolution: 1920 x 1080p at 60Hz
Signal support: VGA/DVI-I
