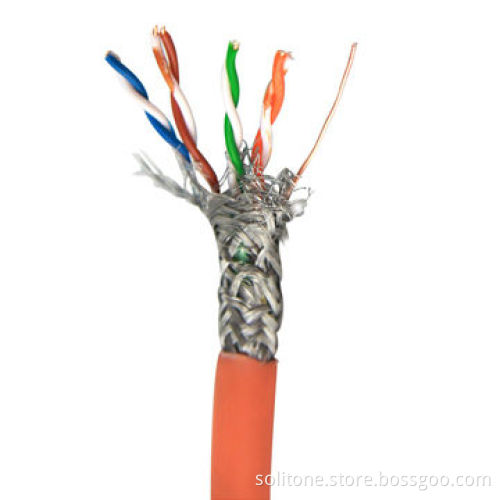

Cat7 LAN Cable, SFTP with 1,000ft LSZH, 1,050V AC Spark Test

Cat7 LAN Cable, SFTP with 1,000ft LSZH, 1,050V AC Spark Test

Get Latest Price

Payment Type:: T/T, Western Union or L/C at Sight

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, Western Union or L/C at Sight

Product Description

Electrical performance:

4-pair solid copper twisted wire
Spark test: 1,050V AC
Dielectric strength: 2,500V DC/3 seconds
Insulation resistance test: 150mΩ/km (minimum)
Conductor resistance: 9.38Ω/100m at 20℃ (maximum)
Resistance unbalance: 2% (maximum)
Capacitance unbalance: 160pF/100m (maximum)
Mutual capacitance: 5,600pF/100m (maximum)
Impedance:
- 64kHz: 125Ω ±20%
- 1 to 250MHz: 100Ω ±15%
- 300 to 600MHz: 100Ω ±25%

Cable data:

Conductor: solid bare copper
AWG: 23
Conductor diameter: 0.583 ±0.02mm
Insulation: foam-skin PE
Insulation average thickness: 0.419mm (minimum at any point: 0.369mm)
Jacket: PVC
Sheath average thickness: 0.05mm (minimum at any point: 0.40mm)
Sheath diameter: 7.4 ±0.3mm
Elongation: 100% (minimum)
Tensile strength: 1.407kg/mm² (minimum)
Aging at 100℃ for 168 hours: elongation (minimum)
Retention: 50%
Minimum tensile strength retention: 75%
Rip cord: yes

Applications:

10GBase-T Ethernet, 1000Base-Tx Gigabit Ethernet, 10Base-T, 100Base-T fast Ethernet (IEEE802.3), 100VG-AnyLAN (IEEE802.12), 155/622Mbps ATM, 550MHz broadband video, voice, T1 and ISDN
ALL proposed category 7 requirements as per ANSI/TIA/EIA, ISO/IEC and Cenelec EN standards

4-pair solid copper twisted wire

Spark test: 1,050V AC

Dielectric strength: 2,500V DC/3 seconds

Insulation resistance test: 150mΩ/km (minimum)

Conductor resistance: 9.38Ω/100m at 20℃ (maximum)

Resistance unbalance: 2% (maximum)

Capacitance unbalance: 160pF/100m (maximum)

Mutual capacitance: 5,600pF/100m (maximum)

Impedance:

64kHz: 125Ω ±20%
1 to 250MHz: 100Ω ±15%
300 to 600MHz: 100Ω ±25%

64kHz: 125Ω ±20%

1 to 250MHz: 100Ω ±15%

300 to 600MHz: 100Ω ±25%

Conductor: solid bare copper

AWG: 23

Conductor diameter: 0.583 ±0.02mm

Insulation: foam-skin PE

Insulation average thickness: 0.419mm (minimum at any point: 0.369mm)

Jacket: PVC

Sheath average thickness: 0.05mm (minimum at any point: 0.40mm)

Sheath diameter: 7.4 ±0.3mm

Elongation: 100% (minimum)

Tensile strength: 1.407kg/mm² (minimum)

Aging at 100℃ for 168 hours: elongation (minimum)

Retention: 50%

Minimum tensile strength retention: 75%

Rip cord: yes

10GBase-T Ethernet, 1000Base-Tx Gigabit Ethernet, 10Base-T, 100Base-T fast Ethernet (IEEE802.3), 100VG-AnyLAN (IEEE802.12), 155/622Mbps ATM, 550MHz broadband video, voice, T1 and ISDN

ALL proposed category 7 requirements as per ANSI/TIA/EIA, ISO/IEC and Cenelec EN standards
