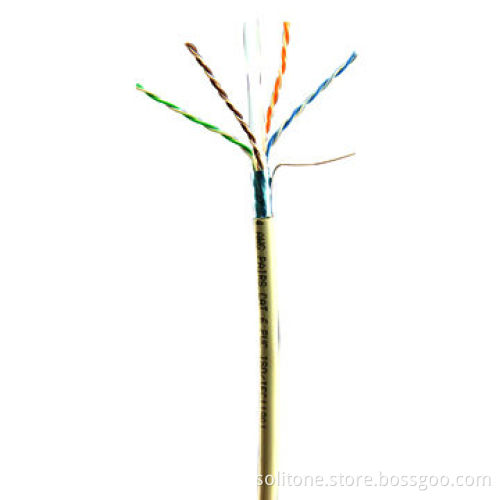

LAN Cable for Cat6, FTP with 23AWG Copper and 6.8mm Outer Diameter

Get Latest Price

Payment Type:: T/T, Western Union or L/C at Sight

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, Western Union or L/C at Sight

Product Description

Applications:

POTS, T1 and T1 fractional, ISDN basic and primary rate, 4/16Mbps token ring (IEEE802.5), 10 BAST-T (IEEE802.3), 100Mbps TP-PMD, 52/155Mbps ATM (ATM forum), 100 BAST-T4 (Ethernet), 100 VG-any LAN (IEEE802.12), 100 BAST-T (fast Ethernet), 1Gbps Ethernet (IEEE802.3)

Electrical performance (at 250MHz):

1.0 to 100.0MHz impedance: 100 ±15 Ohms
1.0 to 250.0MHz impedance: 100 ±22 Ohms

Impedance delay screw: <45ns/100m

Pair to ground capacitance unbalance: 330PF/100m (maximum)

Conductor DC resistance 20%: <73.2 Ohms/km

Resistance unbalance: 5%

Test object: jacket

Test material: PVC

305 meters, packaged in full boxes

Before tensile strength: ≥13.8Mpa

Aging elongation: ≥100%

Aging condition: 100 x 240C x hours

After tensile strength: ≥85%Mpa of unaged

Aging elongation: ≥50% of nagged

Cold bend: no crock (-20 ±2℃ x 4 hours)

Cable data:

Conductor: solid bare copper
AWG: 23
Conductor diameter: 0.57mm
Insulation: PE
Average thickness: 0.24 ±0.03mm
Minimum point thickness: 0.24
Insulation diameter: 1.00 ±0.03mm
Twisting lay length: 30mm underneath
Cable lay length: 200mm underneath
Jacket: PVC
Average thickness: 0.5
Minimum point thickness: 0.4
Outer diameter: 6.8 ±1.0mm
Rip cord: yes
Weight nom: 60kg/km
