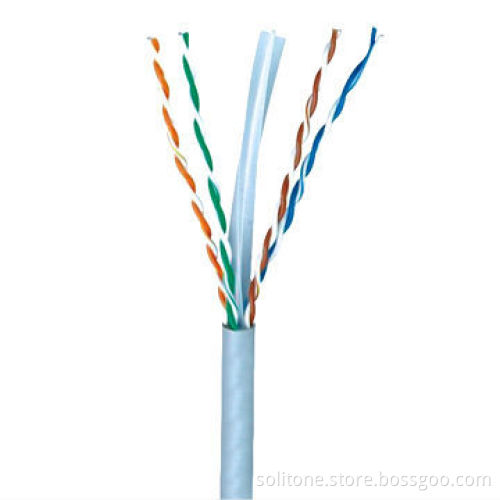

Networking Cable in Cat 6, UTP, Pass Permanent Link Test

Get Latest Price

Payment Type:: T/T, Western Union or L/C at Sight

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, Western Union or L/C at Sight

Product Description

Electrical performance (at 100MHz):

1.0 to 100.0MHz impedance: 100 ±15Ω
1.0 to 250.0MHz impedance: 100 ±22Ω
Impedance delay screw: <45ns/100M
Pair to ground capacitance unbalance: 330pF/100m maximum
Conductor DC resistance: 20%, <73.2Ω/km
Resistance unbalance: 5%
Test object: jacket
Test material: PVC
305 meters, packaged in full boxes
Before tensile strength: ≥13.8MPa
Aging elongation: ≥100%
Aging condition (C x H): 100 x 240
After tensile strength: ≥85%MPa of unaged
Aging elongation: ≥50% of nagged
Cold bend (-20 ±2℃ x 4 hours): no crock

Cable data:

Conductor: solid bare copper
AWG: 23
Conductor diameter: 0.57mm
Insulation: PE
Average thickness: 0.22 ±0.03mm
Min point thickness: 0.18
Insulation diameter: 1.02 ±0.03mm
Twisting lay length: 30mm underneath
Cable lay length: 200mm underneath
Jacket: PVC
Average thickness: 0.5mm
Min point thickness: 0.43mm
Outer diameter: 6.0 ±1.0mm
Rip cord: supported
Weight: 42kg/km

Applications:

1.10GBase-T Ethernet, 1000Base-Tx Gigabit Ethernet, 10Base-T, 100Base-T fast Ethernet (IEEE802.3), 100VG any LAN (IEEE802.12), 155/622Mbps ATM, 550MHz broadband video, voice and T1, ISDN
ALL proposed category 7-requirement as per ANSI/TIA/EIA, IEC and CENELEC EN standards

1.0 to 100.0MHz impedance: 100 ±15Ω

1.0 to 250.0MHz impedance: 100 ±22Ω

Impedance delay screw: <45ns/100M

Pair to ground capacitance unbalance: 330pF/100m maximum

Conductor DC resistance: 20%, <73.2Ω/km

Resistance unbalance: 5%

Test object: jacket

Test material: PVC

305 meters, packaged in full boxes

Before tensile strength: ≥13.8MPa

Aging elongation: ≥100%

Aging condition (C x H): 100 x 240

After tensile strength: ≥85%MPa of unaged

Aging elongation: ≥50% of nagged

Cold bend (-20 ±2℃ x 4 hours): no crock

Conductor: solid bare copper

AWG: 23

Conductor diameter: 0.57mm

Insulation: PE

Average thickness: 0.22 ±0.03mm

Min point thickness: 0.18

Insulation diameter: 1.02 ±0.03mm

Twisting lay length: 30mm underneath

Cable lay length: 200mm underneath

Jacket: PVC

Average thickness: 0.5mm

Min point thickness: 0.43mm

Outer diameter: 6.0 ±1.0mm

Rip cord: supported

Weight: 42kg/km

1.10GBase-T Ethernet, 1000Base-Tx Gigabit Ethernet, 10Base-T, 100Base-T fast Ethernet (IEEE802.3), 100VG any LAN (IEEE802.12), 155/622Mbps ATM, 550MHz broadband video, voice and T1, ISDN

ALL proposed category 7-requirement as per ANSI/TIA/EIA, IEC and CENELEC EN standards
